Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$48,997 USD
Manufacturer:
Continental
Model:
403-8-6
Capacity:
3/8" MILD

Specifications

Condition:
new
Stock number:
061693
The following:
SKF, TORRINGTON, CONTINENTAL
Options available:
PRICE ON REQUEST
Rated rolling capacity:
3/8" MILD
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

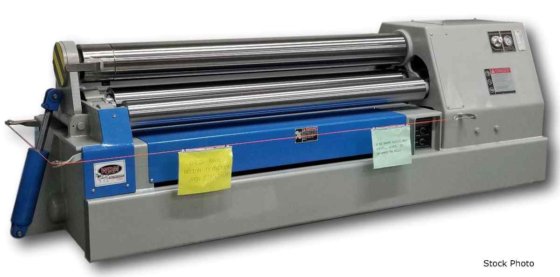

WALDEMAR (NEW) MODEL 403-8-6 HYDRAULIC DOUBLE
PINCH PLATE BENDING MACHINE
RATED ROLLING CAPACITY ....... 3/8" MILD
STEEL PLATE TO 32" DIAMETER X 6' WIDE
NOMINAL TOP ROLL DIAMETER .... 8"
MACHINE IS POWERED BY A CENTRAL HYDRAULIC
SYSTEM, DRIVEN BY 7.5 HP, 230/460 VOLT 3 PH
TEFC MOTOR
STANDARD FEATURES:
-1045 CARBON ROLLS
-HYDRAULIC DRIVEN ROLL WHICH PROVIDES INSTANT
START, STOP, AND REVERSE
-NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL TRANSFORMER
-ELECTRICS MEET NFPA 79 SPECIFICATIONS
-THERMAL OVERLOAD PROTECTION
-SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
-LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
-INFINITELY VARIABLE SPEED FROM 0 TO 22 FPM
-SAFETY CABLE AROUND PERIMETER OF MACHINE
-MACHINE IS CONTROLLED BY HYDRAULIC
DIRECTIONAL VALVES LOCATED ON MACHINE DRIVE
HOUSING
-ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS
-DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
-MACHINE SETS DIRECTLY ON LEVEL FLOOR
-ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
-HYDRAULIC OPERATED DROP END SUPPORT
-COMPONENT SUPPLIERS INCLUDE SOME OR ALL OF
THE FOLLOWING: SKF, TORRINGTON, CONTINENTAL
AUBURN, WHITE, TORQUE HUB, TELEMECHANIQUE
MODULAR CONTROLS, HOFFMAN, RED LION, MORSE
HYDRA, NTN, WRG GEARS, PRINCE, BROWNING,
HYDRAFORCE, DOUBLE A
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
