WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$31,852 USD
Manufacturer:
WALDEMAR
Model:
403-6-5 HYD DBL PINC

Specifications

Condition:
new
Stock number:
061621
Fob:
KENTUCKY
Width:
5'
Voltage:
230/460, 3 PH
Delivery:
8 TO 10 WEEKS ARO
Diameter:
24"
Tefc motor:
5 HP
Mild steel plate:
1/4"
Equipment options:
PRICE ON REQUEST
Infinitely variable speed:
0-22 FPM
Nominal top roll diameter:
6"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

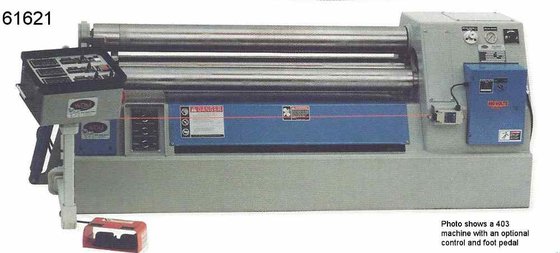

WALDEMAR (NEW) MODEL 403-6-5 HYDRAULIC DOUBLE
PINCH PLATE BENDING MACHINE
RATED ROLLING CAPACITY
MILD STEEL PLATE ............ 1/4"
DIAMETER .................... 24"
WIDTH ....................... 5'
NOMINAL TOP ROLL DIAMETER ..... 6"
INFINITELY VARIABLE SPEED ..... 0-22 FPM
TEFC MOTOR .................... 5 HP
VOLTAGE ....................... 230/460, 3 PH
STANDARD FEATURES:
1045 CARBON ROLLS
HYDRALUIC DRIVEN ROLL WHICH PROVIDES
INSTANT START, STOP AND REVERSE
2 ROLL DRIVE
ELECTRICS TO NFPA-79 SPECIFICATIONS
NEMA 12 CONTROL CABINET WITH FUSED CONTROL
TRANSFORMER
SAFETY CABLE AROUND PERIMETER OF MACHINE
MACHINE IS CONTROLLED BY HYDRAULIC DIR-
ECTIONAL VALVES ON MACHINE DRIVE HOUSING
ROLLS DRIVEN THROUGH PLANETARY OR SPUR GEAR
TYPE SPEED REDUCERS BRAKE(S)
DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
MACHINE SITS DIRECTLY ON LEVEL FLOOR
THERMAL OVERLOAD PROTECTION
SKF SPHERICAL ROLLER BEARINGS
LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC & OVERALL EFFICIENCY
ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
HYDRAULIC OPERATED DROP END SUPPORT
MAIN FRAME AND COMPONENTS ARE FABRICATED
FROM STRUCTURAL STEEL PLATE AND SECTIONS
MANUFACTURED IN THE USA
EQUIPMENT OPTIONS .......... PRICE ON REQUEST
LED ROLL INDICATORS (REPLACE DIALS) ... POR
VARIOUS CONTROL OPTIONS ............... POR
VARIOUS FOOT SWITCHES ................. POR
CONE ATTACHMENTS ...................... POR
BAR ATTACHMENT ........................ POR
BAR & ANGLE ATTACHMENT ................ POR
HARDENED ROLLS (55-60 RC) ............. POR
HARDENED & POLISHED ROLLS (55-60 RC) .. POR
HORIZONAL GROOVE TO SQUARE SHEET/PLATE POR
3/8", 1/2", 5/8" GROOVES FOR RODS,
TUBES & SHEETS WITH ROLLED EDGES .... POR
SIDE SUPPORTS ......................... POR
OVERHEAD SUPPORTS ..................... POR
FOB: KENTUCKY
DELIVERY: 8 TO 10 WEEKS ARO
