WALDEMAR 101-7-6 PINCH ROLL in
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
WALDEMAR
Model:
101-7-6 PINCH ROLL

Specifications

Condition:
new
Stock number:
061554
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

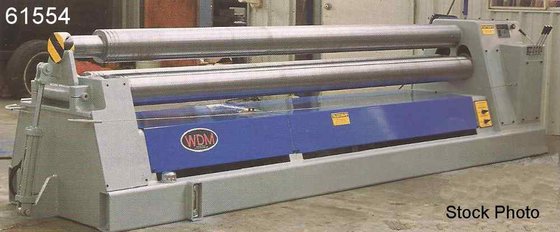

WALDEMAR (NEW) MODEL 101-7-6 HYDRAULIC PINCH
PYRAMID PLATE BENDING MACHINE
RATED CAPACITY ............ 5/16" X 6'
NOMINAL ROLL DIAMETER ..... 7"
ELECTRICS ................. 5 HORSEPOWER 3PH
STANDARD FEATURES:
1045 CARBON ROLLS
HYDRAULIC DRIVEN ROLLS WHICH PROVIDE
INSTANT START, STOP AND REVERSE
NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL TRANSFORMER
ELECTRICS MEET NFPA 79 SPECIFICATIONS
THERMAL OVERLOAD PROTECTION
THREE ROLL DRIVE
SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
INFINATELY VARIABLE SPEED FROM 0 - 22 FPM
SAFETY CABLE AROUND PERIMETER OF MACHINE
MACHINE IS CONTROLLED BY HYDRAULIC
DIRECTIONAL VALVES LOCATED ON MACHINE
DRIVE HOUSING
ROLLS DRIVE THROUGH PLANETARY TYPE SPEED
REDUCERS
DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
MACHINE SETS DIRECTLY ON LEVEL FLOOR
ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
HYDRAULIC OPERATED DROP END SUPPORT
