Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$33,674 USD
Manufacturer:
Continental
Model:
101-7-5 ROLL
Capacity:
5-1/6" X 5'

Specifications

Condition:
new
Stock number:
061551
Electrics:
5 HORSEPOWER 3PH
Following:
SKF, TORRINGTON, CONTINENTAL,
Rated capacity:
5-1/6" X 5'
Options available:
PRICE ON REQUEST
Nominal roll diameter:
7"
Standard roll opening:
3"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

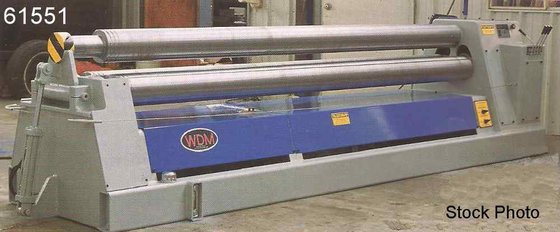

WALDEMAR (NEW) MODEL 101-7-5 HYDRAULIC PINCH
PYRAMID PLATE BENDING MACHINE
STANDARD ROLL OPENING ..... 3"
RATED CAPACITY ............ 5-1/6" X 5'
NOMINAL ROLL DIAMETER ..... 7"
ELECTRICS ................. 5 HORSEPOWER 3PH
STANDARD FEATURES:
1045 CARBON ROLLS
HYDRAULIC DRIVEN ROLLS WHICH PROVIDE
INSTANT START, STOP AND REVERSE
NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL TRANSFORMER
ELECTRICS MEET NFPA 79 SPECIFICATIONS
THERMAL OVERLOAD PROTECTION
THREE ROLL DRIVE
SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
INFINATELY VARIABLE SPEED FROM 0 - 22 FPM
SAFETY CABLE AROUND PERIMETER OF MACHINE
MACHINE IS CONTROLLED BY HYDRAULIC
DIRECTIONAL VALVES LOCATED ON MACHINE
DRIVE HOUSING
ROLLS DRIVE THROUGH PLANETARY TYPE SPEED
REDUCERS
DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
MACHINE SETS DIRECTLY ON LEVEL FLOOR
ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
HYDRAULIC OPERATED DROP END SUPPORT
COMPONENT SUPPLIERS INCLUDE SOME OR ALL OF
FOLLOWING: SKF, TORRINGTON, CONTINENTAL,
AUBURN, CHAR-LYNN, TORQUE HUB,
TELEMECHANIQUE, MODULAR CONTROLS,
HOFFMAN, RED LION, MORSE, HYDRA, NTN,
LINN GEAR, PRINCE, BROWNING, HYDRAFORCE
DOUBLE A
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
BAR AND ANGLE ATTACHMENT ....... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
