WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$37,031 USD
Manufacturer:
WALDEMAR
Model:
K-8-4 ROLL
Capacity:
1/2" X 4'

Specifications

Condition:
new
Stock number:
061543
Volts:
230/460
Roll speed:
0-22 FPM
Tefc motor:
7.5 HP, 3 PHASE
Bar on edge:
2-1/2" X 1"
Rated capacity:
1/2" X 4'
Options available:
PRICE ON REQUEST
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

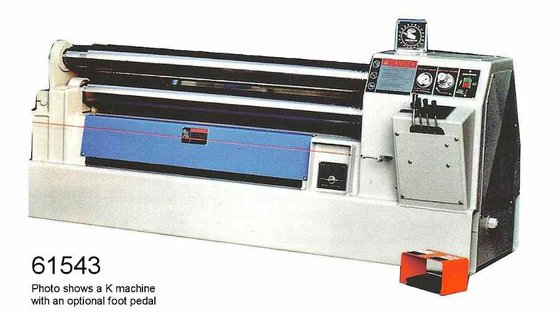

WALDEMAR (NEW) MODEL WDM K-8-4 HYDRAULIC
INITIAL PINCH PLATE BENDING MACHINE
RATED CAPACITY ........... 1/2" X 4'
12X TOP ROLL DIAMETER .. 5/8" X 4'
BAR ON EDGE ............ 2-1/2" X 1"
NOMINAL TOP ROLL DIAMETER. 8"
ROLL SPEED ............... 0-22 FPM
TEFC MOTOR ............... 7.5 HP, 3 PHASE
VOLTS .................... 230/460
STANDARD FEATURES
1045 STEEL ROLLS
TOTAL HYDRAULIC OPERATION
INSTANT START, STOP AND REVERSE
2 ROLL DRIVE
120 VOLT CONTROL CIRCUIT
QUIET HYDRAULIC SYSTEM
ELECTRICS MEET NFPA 79 SPECIFICATIONS
OVERLOAD PROTECTION
SEALED SPHERICAL ROLLER BEARINGS
ROLLS TILT FOR CONE ROLLING
ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS OR SPUR GEAR DRIVES
DIAL POINTER TYPE ROLL POSITION INDICATORS
HORIZONTAL STARTING GROOVE IN PINCH ROLL
HYDRAULICALLY ACTUATED DROP END
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENTS................ POR
HARDENED AND POLISHED ROLLS .... POR
SQUARING GROOVES IN LOWER ROLLS. POR
CIRCULAR GROOVES ............... POR
FORWARD & REVERSE FOOT PEDAL ... POR
THIRD ROLL DRIVE ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
EJECTORS ....................... POR
DRO FOR ROLL POSITION .......... POR
