Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$29,713 USD
Manufacturer:
WALDEMAR
Model:
403-5-5
Capacity:
7.5" X 5

Specifications

Condition:
new
Stock number:
061515
Horse power:
3
Rated capacity:
7.5" X 5
Options available:
PRICE ON REQUEST
Nominal roll diameter:
5
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

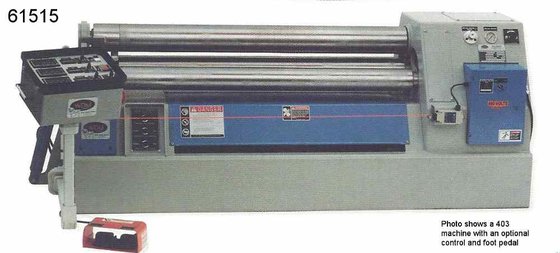

WALDEMAR (NEW) MODEL 403-5-5 BENDING MACHINE
RATED CAPACITY ................ 7.5" X 5
NOMINAL ROLL DIAMETER ......... 5
HORSE POWER ................... 3
STANDARD FEATURES:
1045 CARBON ROLLS
TOTAL HYDRALUIC OPERATION
INSTANT START STOP REVERSE
NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL TRANSFORMER
2 ROLL DRIVE
3 PHASE 230/460 VOLTS
ELECTRICS TO NFPA-79 SPECIFICATIONS
THERMAL OVERLOAD PROTECTION
SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
INFINITELY VARIABLE SPEED FROM 0 TO 22 FPM
SAFETY CABLE AROUND PERIMETER OF MCHINE
MACHINE IS CONTROLLED BY HYD DIRECTIONAL
VALVES LOCATED ON MACHINE DRIVE HOUSING
ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS
DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
MACHINE SETS DIRECTLY ON LEVEL FLOOR
ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
HYDRAULIC OPERATED DROP END SUPPORT
COMPONENT SUPPLIERS INCLUDE SOME OR ALL OF
THE FOLLOWING:
SKF, TORRINGTON, CONTINENTAL, AUBURN, WHITE
TORQUE HUB, TELEMECHANIQUE, MODULAR CONTROL
HOFFMAN, RED LION, MORSE, HYDRA, NTN, WRG
GEARS, PRINCE, BROWNING, HYDRAFORCE, DBL A
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
