Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$38,870 USD
Manufacturer:
WALDEMAR
Model:
403-7-6
Capacity:
9/32" X 6'

Specifications

Condition:
new
Stock number:
061530
Motor:
5 HP, 3 PHASE
Volts:
230/460
Options available:
PRICE ON REQUEST
Rated rolling capacity:
9/32" X 6'
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

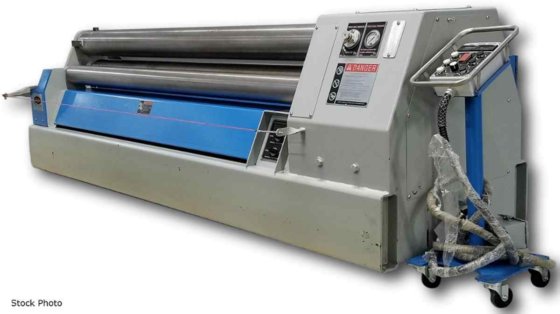

WALDEMAR (NEW) MODEL 403-7-6 HYDRAULIC DOUBLE
PINCH PLATE BENDING MACHINE
RATED ROLLING CAPACITY ...... 9/32" X 6'
NOMINAL TOP ROLL DIAMETER ... 7"
MOTOR ....................... 5 HP, 3 PHASE
VOLTS ....................... 230/460
ROLL SPEED - INF. VARIABLE .. 0-22 FPM
STANDARD FEATURES:
1045 STEEL ROLLS MACHINED TO 63 MICRO INCH
TOTAL HYDRAULIC OPERATION
INSTANT START, STOP, AND REVERSE
2 ROLL DRIVE
ELECTRICS MEET NFPA 79 SPECIFICATIONS
24V-120 AC CONTROL CIRCUIT
OVERLOAD PROTECTION
SEALED SPHERICAL ROLLER BEARINGS
SAFETY/EMERGENCY STOP CABLE
TEFC MAIN MOTOR
HYDRAULICALLY ACTUATED DROP END
COMPACT, STREAMLINED, WELDED STEEL FRAME
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
