Top Seller
TENNSMITH ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$6,995 USD
Manufacturer:
TENNSMITH
Model:
SR48P SLIP ROLL
Capacity:
16 GAUGE

Specifications

Condition:
new
Stock number:
060366
Roll speed:
22 RPM
Wire grooves:
3/8" 1/2" 5/8"
Diameter of rolls:
3"
Capacity, mild steel:
16 GAUGE
Maximum forming length:
49"
Minimum forming radius:
1-1/2"
Gearing ratio ................... 4:
1
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

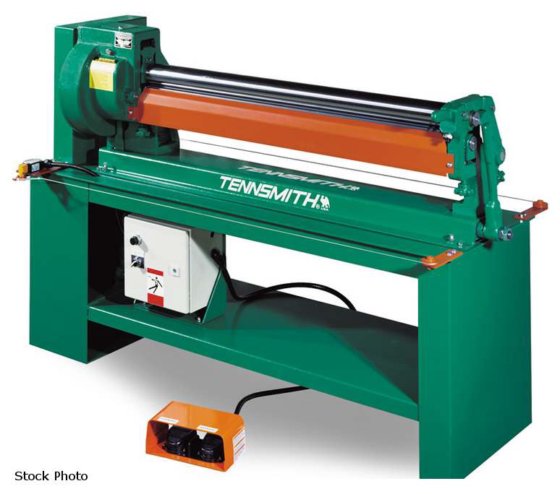

TENNSMITH (NEW) MODEL SR48P POWERED SLIP ROLL
CAPACITY, MILD STEEL ............ 16 GAUGE
MAXIMUM FORMING LENGTH .......... 49"
DIAMETER OF ROLLS ............... 3"
MINIMUM FORMING RADIUS .......... 1-1/2"
WIRE GROOVES .............. 3/8" 1/2" 5/8"
GEARING RATIO ................... 4:1
ROLL SPEED ...................... 22 RPM
MOTOR .... 230/640V, 3 PH, 60 HZ, 3/4 HP
ELECTRIC-POWERED DRIVE FOR PRODUCTION FORMING
OF CURVED PARTS AND TUBES MADE OF 16 GAUGE
AND LIGHTER SHEET METAL
FEATURES:
- PRECISION-TURNED, GROUND AND POLISHED HIGH
CARBON STEEL ROLLS
- HEAVY-DUTY CAST IRON FRAMES
- WELDED STEEL BASE
- LARGE ROLL ADJUSTING SCREWS
- SCALES FOR SPEEDING REPEAT SET-UP
- FRONT-MOUNTED HANDLE TO LIFT THE UPPER ROLL
FOR MATERIAL REMOVAL
- FOOT PEDAL FOR INSTANT FORWARD AND REVERSE
- ELECTROMAGNETIC BRAKE
- SAFETY CABLE STOPS THE ROLLS WHEN TRIPPED
- 2 MAGNETIC MOTOR STARTERS
- ENCLOSED ELECTRICAL BOX WITH PILOT LIGHT
- FULLY ENCLOSED DRIVE TRAIN
- ROLLS AND GEARS MOUNTED IN HARDENED BRONZE
BUSHINGS
