WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$124,481 USD
Manufacturer:
WALDEMAR
Model:
101-13-10
Capacity:
3/4" X 10'

Specifications

Condition:
new
Stock number:
061443
Angle:
4" X 4" X 1/2"
12 x top:
7/8" X 10
Bar on edge:
4 X 1-1/2
Horse power:
25 HP
Rated capacity:
3/4" X 10'
Options available:
PRICE ON REQUEST
Nominal roll diameter:
13"
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

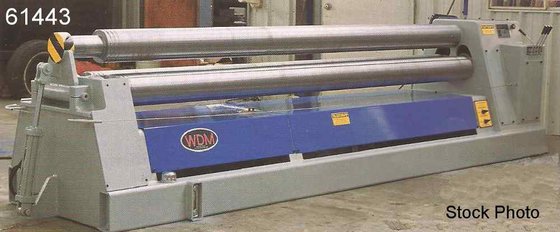

WALDEMAR (NEW) MODEL 101-13-10 3-ROLL PLATE
ROLL
RATED CAPACITY ............. 3/4" X 10'
CAPACITY BASED ON 40,000 PSI YIELD STRENGTH
STEEL
ROLL DIAMETER
12 X TOP ................. 7/8" X 10
NOMINAL ROLL DIAMETER ...... 13"
HORSE POWER ................ 25 HP
BAR ON EDGE ................ 4 X 1-1/2
ANGLE ...................... 4" X 4" X 1/2"
STANDARD FEATURES:
*FRAME CONSTRUCTION - THE MAIN FRAME IS
CONSTRUCTED OF STEEL PLATES AND SECTIONS AND
WELDED TO FORM ONE INTEGRAL UNIT
*ROLLS - THE ROLLS ARE ACCURATELY MACHINED
FROM 1045-1050 FORGING OR BARS
*BEARINGS - SPHERICAL ROLLER, TAPERED ROLLER,
AND BALL BEARINGS ARE USED THROUGHOUT THE
MACHINE
*ROLL SUPPORT SYSTEM - THE LOWER ROLLS ARE
SUPPORTED ON PIVOTING BEARING CASES,
ACUTATED BY TWO SPECIAL HYDRAULIC CYLINDERS
CONNECTED IN SERIES WHICH PROVIDE PARALLEL
MOVEMENT THOUGHOUT ENTIRE TRAVEL RANGE AND
WHICH CAN BE ANGLED TO ROLL CONES.
*MOTOR AND ELECTRICAL SYSTEM - MAIN DRIVE
MOTOR IS A TOTALLY ENCLOSED FAN-COOLED
TYPE AND IS DIRECTLY COUPLED TO THE MAIN
HYDRAULIC PUMP. STANDARD VOLTAGE IS
230/460 VOLTS, 3 PHASE, 60 HERTZZ
*HYDRAULIC SYTEM - THE MACHINES HYDAULIC
SYSTEM IS DESIGNED FOR MAX EFFICIENCY
*CONTROLS - THE DIRECTIONAL & SPEED CONTROLS
ARE CONVENIENTLY LOCATED ON THE MAIN HOUSING
OR THE MOVEABLE CONTROL CONSOLE OR ON THE
RAVING PENDANT CONTROL, DEPENDING ON MACHINE
*ROLL POSITION INDICATOR - THE LOWER ROLL
POSITION IS ACCURATELY IDENTIFIED BY OUR
STANDARD DIAL POINTER TYPE INDICATOR
*ROLL DRIVE SYSTEM - ALL THREE ROLLS ARE
DRIVEN ON WDM 100 SERIES ROLLS.
*CONE FORMING - CONES CAN BE READILY FORMED
USING THE STANDARD ROLL TILT FEATURE AND THE
OPTIONAL CONE ATTACHMENT
*ROLL STRUCTURAL SECTIONS - BECAUSE OF THE
LARGE OPENING BETWEEN THE TOP AND BOTTOM
ROLLS, IT IS POSSIBLE TO ROLL SYMETRICAL
STRUCTURAL SECTIONS, SUCH AS CHANNELS, LEG
IN AND LEG OUT, SQUARE AND RECTANGLE TUBES
AND FLAT BARS THE EASYWAY WITHOUT ANY
ADDITIONAL ATTACHMENTS
*SAFETY FEATURE - ALL WDM ROLLING MACHINES
HAVE A SAFETY CABLE AROUND THE PERIMETER
OF THE MACHINE WHICH STOPS THE MAIN DRIVE
MOTOR WHEN ACTUATED
*BAR AND ANGLE ATTACHMENT - THIS ATTACHMENT
GOES IN BOARD OF THE BEARINGS AND ENABLES
THE USER TO ROLL FLAT BAR THE HARD WAY AND
ANGLES THE T=SECTIONS LEG IN AND LEG OUT
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
BAR AND ANGLE ATTACHMENT ....... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
