Top Seller
WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$24,408 USD
Manufacturer:
WALDEMAR
Model:
101-5-5

Specifications

Condition:
new
Stock number:
060675
Options available:
PRICE ON REQUEST
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

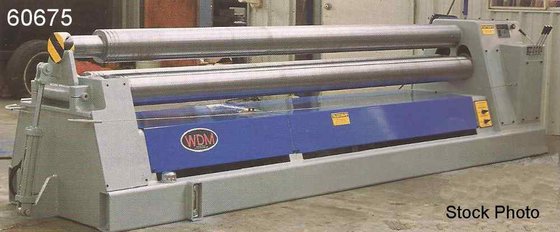

WALDEMAR (NEW) MODEL 101-5-5 HYDRAULIC PINCH
PLATE BENDING MACHINE
NOMINAL ROLL DIAMETER OF 5"
RATED ROLLING CAPACITY IS .179" MS PLATE TO
20" DIAMETER X 5' WIDE
POWERED BY CENTRAL HYD SYSTEM
DRIVEN BY 3 PH 230/460 VOLT 3 PHASE
STANDARD FEATURES:
1045 CARBON ROLLS
HYD DRIVEN ROLLS WHICH PROVIDE INSTANT START
STOP AND REVERSE
NEMA 12 CONTROL CABINET W/FUSIBLE DISCONNECT
AND FUSE CONTROL TRANSFORMER
ELECTRICS MEET NFPA 79 SPECS
THERMAL OVERLOAD PROTECTION
THREE ROLL DRIVE
SPHERICAL ROLLER BEARINGS ON ALL MAIN BEARING
LSHT TYPE HYD DRIVE MOTOR W/HIGH VOLUMETRIC
AND OVERALL EFFICIENCY
INFINITELY VARIABLE SPEED FROM 0 - 22 FPM
SAFETY CABLE AROUND PERIMETER OF MACHINE
MACHINE IS CONTROLLED BY HYD DIRECTIONAL
VALVES LOCATED ON MACH DRIVE HOUSING
ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS
DIAL/POINTER TPE INDICATORS TO SHOW ROLL
POSITION
MACHINE SETS DIRECTLY ON LEVEL FLOOR
ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
HYDRAULIC OPERATED DROP END SUPPORT
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
BAR AND ANGLE ATTACHMENT ....... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
