WALDEMAR 101-6-5 in Dodge Center,
Location:
Dodge Center, MN, USA
Manufacturer:
WALDEMAR
Model:
101-6-5

Specifications

Condition:
new
Stock number:
060671
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

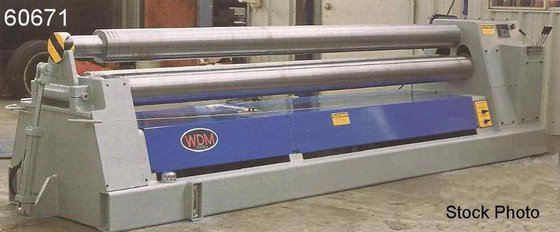

WALDEMAR (NEW) MODEL 101-6-5 THREE ROLL PINCH
PYRAMID HYDRAULIC PLATE BENDING MACHINE
RATED CAPACITY ................ 0.220" X 5'
(4 X TOP ROLL DIAMETER)
RATED CAPACITY ................ 1/4" X 5'
(12 X TOP ROLL DIAMETER)
NOMINAL ROLL DIAMETER ......... 6
HORSE POWER ................... 5
BAR ON EDGE ................... 1-1/2 X 3/4
ANGLE ......................... 1-1/4 X 1-1/4
X 3/16
CAPACITY IS BASED ON 60,000 P.S.I. TENSILE
40,000 P.S.I. YIELD STRENGTH MATERIAL
STANDARD FEATURES:
1045 STEEL ROLLS MACHINED TO 63 MICRO INCHES
TOTAL HYDRAULIC OPERATION
INSTANT START-STOP-REVERSE
ROLL SPEED INFINITELY VARI 0 - 22 FPM
3 ROLL DRIVE
3 PHASE 230/460 VOLT
ELECTRICS TO NFPA-79 SPECIFICATION
120 VOLT CONTROL CIRCUIT
SAFETY INTERLOCK ON ELECTRICAL CABINET
SAFETY/EMERGENCY STOP CABLE ON 3 SIDES OF
MACHINE
OVERLOAD PROTECTED
TEFC MAIN MOTOR
QUIET HYDRAULIC SYSTEM
V.O.C. COMPLAINT HAZE GRAY EPOXY AND BLUE
ENAMEL FINISH
SEALED SPHERICAL ROLLER BEARINGS ON ALL
MAIN POINTS
