WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$40,916 USD
Manufacturer:
WALDEMAR
Model:
101-7-12 HYD PINCH

Specifications

Condition:
new
Stock number:
061465
Options available:
PRICE ON REQUEST
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

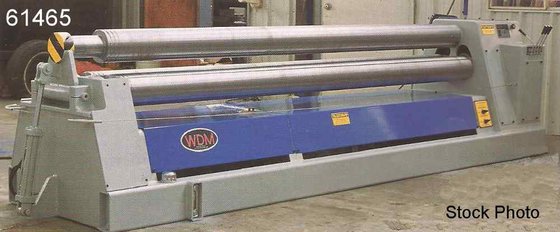

WALDEMAR (NEW) MODEL 101-7-12 HYDRAULIC PINCH
PYRAMID PLATE BENDING MACHINE
THE MAIN FRAME AND COMPONENTS ARE FABRICATED
FROM STUCTURAL STEEL PLATE AND SECTIONS
MODEL 100-7-12 HAS A NOMINAL ROLL DIAMETER
OF 7 INCHES
RATED ROLLING CAPACITY IS .134" MILD STEEL
PLATE TO 28" DIAMETER X 12' WIDE
MACHINE IS POWERED BY A CENTRAL HYDRAULIC
SYSTEM, DRIVEN BY A 5 HP 230/460 VOLT
3 PHASE TEFC MOTOR
STANDARD FEATURES:
--1045 CARBON ROLLS
--HYDRAULIC DRIVEN ROLLS WHICH PROVIDE
INSTANT START, STOP AND REVERSE
--NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL
--ELECTRICS MEET NFPA 79 SPECIFICATIONS
--THERMAL OVERLOAD PROTECTION
--THREE ROLL DRIVE
--SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
--LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
--INFINITELY VARIABLE SPEED FROM 0 - 22 FPM
--SAFETY CABLE AROUND PERIMETER OF MACHINE
--MACHINE IS CONTROLLED BY HYDRAULIC
DIRECTIONAL VALVES LOCATED ON MACHINE DRIVE
HOUSING
--ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS
--DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
--MACHINE SETS DIRECTLY ON LEVEL FLOOR
--ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
--HYDRAULIC OPERATED DROP END SUPPORT
--COMPONENT SUPPLIERS INCLUDE SOME OF THE
FOLLOWING:
SKF TORRINGTON, CONTINENTAL, BROWNING,
CHAR-LYNN, TORQUE HUB, MORSE, TELEMECHANIQU
AUBURN, HYDRAFORCE, DOUBLE A
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
BAR AND ANGLE ATTACHMENT ....... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
