WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$32,267 USD
Manufacturer:
WALDEMAR
Model:
101-7-4
Capacity:
5/16" X 4'

Specifications

Condition:
new
Stock number:
060670
Angle:
1-1/2 X 1-1/2
Bar on edge:
2 X 3/4
Horse power:
7.5
Rated capacity:
5/16" X 4'
Rated capacity 2:
3/8" X 4'
Options available:
PRICE ON REQUEST
Nominal roll diameter:
7
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

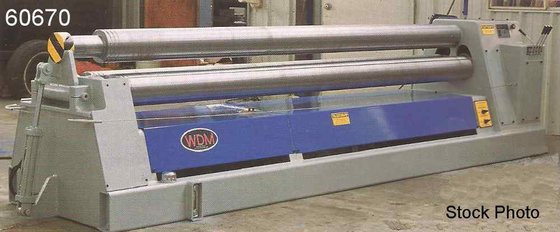

WALDEMAR (NEW) MODEL 101-7-4 THREE ROLL PINCH
PYRAMID HYDRAULIC PLATE BENDING MACHINE
RATED CAPACITY ................ 5/16" X 4'
(4 X TOP ROLL DIAMETER)
RATED CAPACITY ................ 3/8" X 4'
(12 X TOP ROLL DIAMETER)
NOMINAL ROLL DIAMETER ......... 7
HORSE POWER ................... 7.5
BAR ON EDGE ................... 2 X 3/4
ANGLE ......................... 1-1/2 X 1-1/2
X 1/4
CAPACITY IS BASED ON 60,000 P.S.I. TENSILE
40,000 P.S.I. YIELD STRENGTH MATERIAL
STANDARD FEATURES:
1045 STEEL ROLLS MACHINED TO 63 MICRO INCHES
TOTAL HYDRAULIC OPERATION
INSTANT START-STOP-REVERSE
ROLL SPEED INFINITELY VARI 0 - 22 FPM
3 ROLL DRIVE
3 PHASE 230/460 VOLT
ELECTRICS TO NFPA-79 SPECIFICATION
120 VOLT CONTROL CIRCUIT
SAFETY INTERLOCK ON ELECTRICAL CABINET
SAFETY/EMERGENCY STOP CABLE ON 3 SIDES OF
MACHINE
OVERLOAD PROTECTED
TEFC MAIN MOTOR
QUIET HYDRAULIC SYSTEM
V.O.C. COMPLAINT HAZE GRAY EPOXY AND BLUE
ENAMEL FINISH
SEALED SPHERICAL ROLLER BEARINGS ON ALL
MAIN POINTS
HYDRAULICALLY ACTUATED DROP END
ACCURATELY MACHINED, COMPACT, STEAMLINED
ALL-WELDER STEEL FRAME
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
BAR AND ANGLE ATTACHMENT ....... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
