WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$47,169 USD
Manufacturer:
Continental
Model:
403-8-5

Specifications

Condition:
new
Stock number:
061463
The following:
SKF, TORRINGTON, CONTINENTAL
Options available:
PRICE ON REQUEST
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

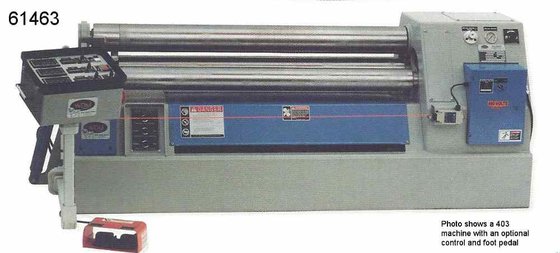

WALDEMAR (NEW) MODEL 403-8-5 HYDRAULIC DOUBLE
PINCH PLATE BENDING MACHINE
THE MAIN FRAME AND COMPONENTS ARE FABRICATED
FROM STRUCTURAL STEEL PLATE AND SECTIONS
MODEL 403-8-5 HAS A NOMINAL ROLL DIAMETER OF
8 INCHES
RATED ROLLING CAPACITY IS 3/8" MILD STEEL
PLATE TO 32" DIAMETER X 5' WIDE
THIS MACHINE IS POWERED BY A CENTRAL HYD
SYSTEM, DRIVEN BY A 7.5 HP, 230/460 VOLT
3 PHASE TEFC MOTOR
STANDARD FEATURES:
--1045 CARBON ROLLS
--HYDRAULIC DRIVEN ROLLS WHICH PROVIDE
INSTANT START, STOP, AND REVERSE
--NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL TRANSFORMER
--ELECTRICS MEET NFPA 79 SPECIFICATIONS
--THERMAL OVERLOAD PROTECTION
--THREE ROLL DRIVE
--SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
--LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
--INFINITELY VARIABLE SPEED FROM 0 TO 22 FPM
--SAFETY CABLE AROUND PERIMETER OF MACHINE
--MACH IS CONTROLLED BY HYDRAULIC DIRECTIONAL
VALVES LOCATED ON MACHINE DRIVE HOUSING
--ROLLS DRIVEN THROUGH PLANETARY TYPE SPEED
REDUCERS
--DIAL/POINTER TYPE INDICATORS TO SHOW ROLL
POSITION
--MACHINE SETS DIRECTLY ON LEVEL FLOOR
--ABILITY TO ROLL SYMMETRICAL STEEL SECTIONS
WITHOUT ADDITIONAL ATTACHMENTS
--HYDRAULIC OPERATED DROP END SUPPORT
--COMPONENT SUPPLIERS INCLUDE SOME OR ALL OF
THE FOLLOWING: SKF, TORRINGTON, CONTINENTAL
BROWNING, CHAR-LYNN, TORQUE HUB, MORSE, NTN
TELEMECHANIQUE, MODULAR CONTROLS, HOFFMAN,
RED LION, HYDRA, LINN GEAR, PRINCE, AUBURN
HYDRAFORCE, DOUBLE A
OPTIONS AVAILABLE .......... PRICE ON REQUEST
CONE ATTACHMENT ................ POR
HEAVY-DUTY CONE ATTACHMENT ..... POR
HARDENED ROLLS ................. POR
HARDENED AND POLISHED ROLLS .... POR
CIRCULAR GROOVES ............... POR
STARTING GROOVES ............... POR
SIDE SUPPORTS .................. POR
OVERHEAD SUPPORTS .............. POR
