Top Seller
WALDEMAR 403-9-5 in Dodge Center,
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
WALDEMAR
Model:
403-9-5

Specifications

Condition:
new
Stock number:
061481
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

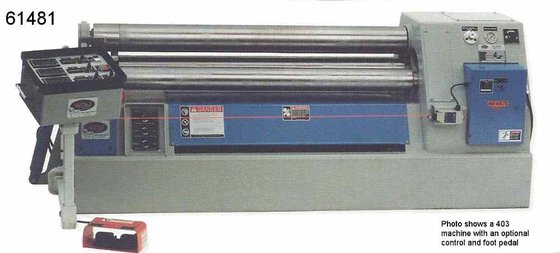

WALDEMAR (NEW) MODEL 403-8-8 HYDRAULIC DOUBLE
PINCH PLATE BENDING MACHINE
THE MAIN FRAME AND COMPONENTS ARE FABRICATED
FROM STRUCTURAL STEEL PLATE AND SECTIONS
MODEL 403-9-5 HAS A NOMINAL ROLL DIAMETER OF
9 INCHES
RATED ROLLING CAPACITY IS 1/2" MILD STEEL
PLATE TO 135" DIAMETER X 5' WIDE
THIS MACHINE IS POWERED BY A CENTRAL HYD
SYSTEM, DRIVEN BY A 1O HP, 230/460 VOLT
3 PHASE TEFC MOTOR
STANDARD FEATURES:
--1045 CARBON ROLLS
--HYDRAULIC DRIVEN ROLLS WHICH PROVIDE
INSTANT START, STOP, AND REVERSE
--NEMA 12 CONTROL CABINET WITH FUSIBLE
DISCONNECT AND FUSE CONTROL TRANSFORMER
--ELECTRICS MEET NFPA 79 SPECIFICATIONS
--THERMAL OVERLOAD PROTECTION
--TWO ROLL DRIVE
--SPHERICAL ROLLER BEARINGS ON ALL MAIN
BEARINGS
--LSHT TYPE HYDRAULIC DRIVE MOTOR WITH HIGH
VOLUMETRIC AND OVERALL EFFICIENCY
--INFINITELY VARIABLE SPEED FROM 0 TO 22 FPM
--SAFETY CABLE AROUND PERIMETER OF MACHINE
--MACH IS CONTROLLED BY HYDRAULIC DIRECTIONAL
VALVES LOCATED ON MACHINE DRIVE HOUSING
