WALDEMAR ROLLS in Dodge Center,
Location:
Dodge Center, MN
Price:
$11,981 USD
Manufacturer:
WALDEMAR
Model:
B-4-60
Capacity:
14 GA X 5'

Specifications

Condition:
new
Stock number:
061259
Capacity:
14 GA X 5'
Main drive motor:
2 HP TEFC
Options available:
PRICE ON REQUEST
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

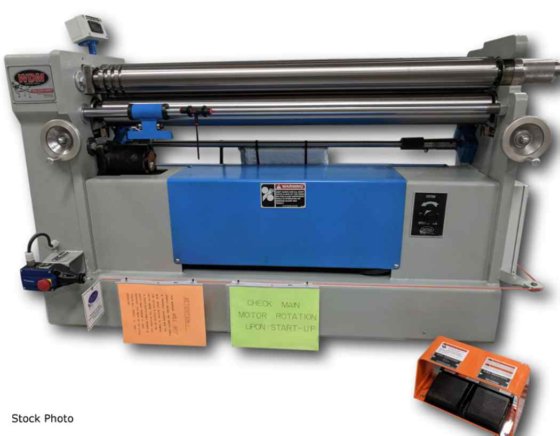

WALDEMAR (NEW) MODEL B-4-60 INITIAL PINCH
SHEET AND PLATE BENDING MACHINE
CAPACITY ........................ 14 GA X 5'
MAIN DRIVE MOTOR ................ 2 HP TEFC
NEMA 12 ELECTRICAL ENCLOSURES
ELECTRICS TO NFPA 79 SPECIFICATIONS
230/460 VOLT 3 PHASE 60 HZ ELECTRICS
5" DIAMETER 1045 STEEL ROLLS
14 FPM ROLLING SPEED
FEATURES:
--ALL GEAR DRIVE
--SEALED BALL & ROLLER BEARINGS ON ALL ROLLS
AND IDLER GEARS
--UNIQUE HIGH TORQUE HYD DRIVE SYSTEM
--INDEPENDENT ADJUSTMENT OF THE PINCH ROLL
VIA A HANDWHEEL-WEDGE-SCREW ARRANGEMENT
--ALLOY STEEL BEARING CASES AND WEDGES
--BENDING ROLL ADJUSTED WITH HANDWHEEL VIA
BRONZE WORM GEAR/ALLOY STEEL SCREW
ARRANGMENT, TILTABLE FOR CONE ROLLING
--INSTANT START, STOP, AND REVERSE VIA
GUARDED FOOT PEDAL
--SWING-OUT TOP ROLL FOR EASY WORKPIECE
REMOVAL
--SAFETY CABLE ON THREE SIDES OF MACHINE
--STARTING GROOVE IN PINCH PRLL TO FACILITATE
RAPID WORKPIECE PREBENDING AND ROLLING
--ALUMINUM SCALE AND POINTER TO SHOW BENDING
ROLL POSITION
--HAZE GRAY EPOXY AND SAFETY BLUE ENAMEL
FINISH
OPTIONS AVAILABLE .......... PRICE ON REQUEST
VARIABLE SPEED ..................... POR
CONE ATTACHMENT .................... POR
HARDENED & POLISHED ROLLS 55-60 RC . POR
HARDENED & POLISHED ROLLS 28-32 RC . POR
SQUARING GROOVES ................... POR
CIRCULAR GROOVES ................... POR
3RD ROLL DRIVE ..................... POR
ELECTRIC DRO ....................... POR
MECHANICAL DRO ..................... POR
POWER BENDING ADJUSTMENT ........... POR
POWER DISC ......................... POR
HIGH SPEED PACKAGE ................. POR
