WALDEMAR B-5-60 ROLL in Dodge
Location:
Dodge Center, MN, USA
Manufacturer:
WALDEMAR
Model:
B-5-60 ROLL

Specifications

Condition:
new
Stock number:
061176
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

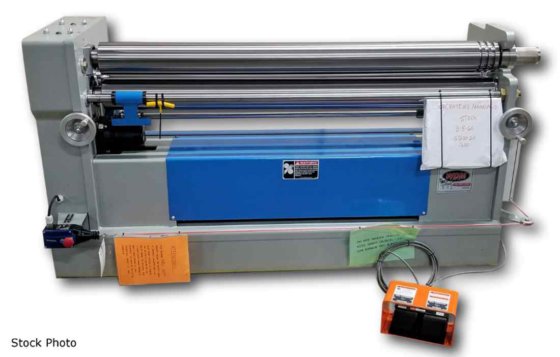

WALDEMAR (NEW) MODEL B-5-60 HYDRAULIC INITIAL
PINCH SHEET BENDING ROLL
NOMINAL ROLL DIAMETER ......... 5"
ROLLING CAPACITY .............. 10 GA X 5'
MOTOR ......................... 3 HP, 3 PHASE
VOLTS ......................... 230/460
STANDARD FEATURES
1045 STEEL ROLLS MACHINED TO 63 MICRO INCH
TOTAL HYDRAULIC OPERATION
INSTANT START, STOP AND REVERSE
2 ROLL DRIVE
ELECTRICAL TO NFPA-79 SPECIFICATIONS
120 VOLT CONTROL CIRCUIT
PINCH ROLL STARTING GROOVE
OVERLOAD PROTECTED
TEFC MOTOR
MANUALLY OPERATED DROP END COLLAR
SWING OUT TOP ROLL
COMPACT, ALL WELDED STEEL FRAME
OPTIONS AVAILABLE .......... PRICE ON REQUEST
VARIABLE SPEED ..................... POR
CONE ATTACHMENT .................... POR
HARDENED & POLISHED ROLLS 55-60 RC . POR
HARDENED & POLISHED ROLLS 28-32 RC . POR
SQUARING GROOVES ................... POR
CIRCULAR GROOVES ................... POR
3RD ROLL DRIVE ..................... POR
ELECTRIC DRO ....................... POR
MECHANICAL DRO ..................... POR
