WALDEMAR B-6-72 in Dodge Center,
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
WALDEMAR
Model:
B-6-72

Specifications

Condition:
new
Stock number:
061484
Category:
Machine Tools equipment in United States
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

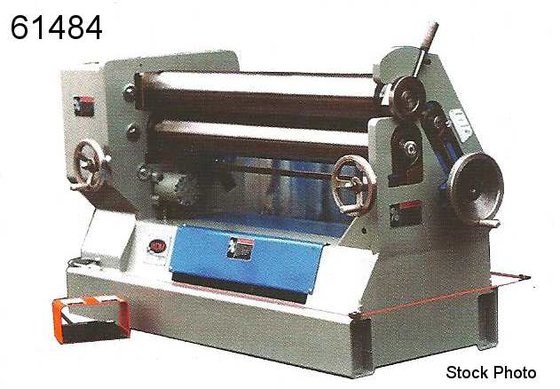

WALDEMAR (NEW) MODEL B-6-72 INITIAL PINCH
SHEET AND PLATE BENDING MACHINE
CAPACITY .................... 7/32" X 6'
MAIN DRIVE MOTOR ............ 5 HP TEFC
NEMA 12 ELECTRICAL ENCLOSURES
ELECTRICS TO NFPA 79 SPECIFICATIONS
230/460 VOLT 3 PHASE 60 HZ ELECTRICS
6" DIAMETER 1045 STEEL ROLLS
14 FPM ROLLING SPEED
FEATURES:
--ALL GEAR DRIVE
--SEALED BALL & ROLLER BEARINGS ON ALL ROLLS
AND IDLER GEARS
--UNIQUE HIGH TORQUE HYD DRIVE SYSTEM
--INDEPENDENT ADJUSTMENT OF THE PINCH ROLL
VIA A HANDWHEEL-WEDGE-SCREW ARRANGEMENT
--ALLOY STEEL BEARING CASES AND WEDGES
--BENDING ROLL ADJUSTED WITH HANDWHEEL VIA
BRONZE WORM GEAR/ALLOY STEEL SCREW
ARRANGMENT, TILTABLE FOR CONE ROLLING
--INSTANT START, STOP, AND REVERSE VIA
GUARDED FOOT PEDAL
--SWING-OUT TOP ROLL FOR EASY WORKPIECE
REMOVAL
--SAFETY CABLE ON THREE SIDES OF MACHINE
--STARTING GROOVE IN PINCH PRLL TO FACILITATE
RAPID WORKPIECE PREBENDING AND ROLLING
--ALUMINUM SCALE AND POINTER TO SHOW BENDING
ROLL POSITION
