Top Seller
WEBB ROLLS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Webb
Model:
7L 1010
Capacity:
10' X 3/8" MILD

Specifications

Condition:
new
Stock number:
060625
Capacity:
10' X 3/8" MILD
And starters:
$ 5,480.00
Diameter roll:
10"
Travel of the rolls:
$ 750.00
Mechanical indicator:
$ 450.00
Subcategory:
Rolls
Subcategory 2:
Plate & sheet

Description

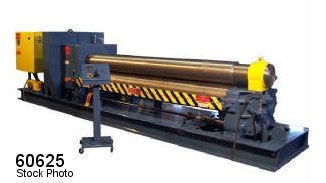

(NEW) WEBB MDL 7L 1010 INITIAL TYPE PLATE
BENDING ROLL
CAPACITY,,,,,,,,,,,,,,,,,,, 10' X 3/8" MILD
DIAMETER ROLL,,,,,,,,,,,,,, 10"
10 HP SLIP RING VARIABE SPEED MAIN DRIVE
MOTOR WITH MAGNETIC BRAKE AND 7-1/2 HP
SQUIRREL CAGE REAR ROLL ADJUSTING MOTOR
CONTROL MOUNTED ON PORTABLE CONSOLE
OVERLOAD AND UNDERVOLTAGE PROTECTION ON BOTH
MOTORS
FULL LENGTH SAFETY TREADLES ACROSS THE FRONT
AND BACK FOR EMERGENCY STOPPING
FUSED DISCONNECT
TRANSFORMER TO REDUCE VOLTAGE
ALL CONTROLS AND MOTORS MOUNTED AND WIRED
COMPLETE WITH THREE ROLL DRIVE
MAIN DRIVE GEAR REDUCER
AUTOMATIC BALANCE BAR TO TILT TOP ROLL
DECK PLATES
LONGITUDINAL FEED GROOVES IN BOTH LOWER ROLLS
STEEL GEAR GUARDS
OPTIONAL:
HARDENED ROLLS FROM 4140 MATERIAL,$ 3,000.00
AIR CYLINDER TO OPERATE DROP HINGE 2,025.00
CENTRALIZED LUBRICATION SYSTEM,,,,$ 3,355.00
CONE ROLLING ATTACHMENT
BOTH SHOE & ROLLER FURNISHED,,,,$ 965.00
POWER ADJUSTMENT ON LOWER FRONT
PINCH ROLL WITH 2 HP MOTOR, CONTROL
AND STARTERS,,,,,,,,,,,,,,,,,,,,$ 5,480.00
LIMIT SWITCHES TO PREVENT OVER
TRAVEL OF THE ROLLS,,,,,,,,,,,,,$ 750.00
MECHANICAL INDICATOR,,,,,,,,,,,,,,$ 450.00
DIGITAL INDICATOR FOR REAR ROLL,,,$ 1,650.00
DELIVERY 15 WEEKS
