Top Seller
GMC FINISH PRO FINISHERS in
Location:
Dodge Center, MN
Manufacturer:
GMC
Model:
FP-4075
Capacity:
1800 CFM

Specifications

Condition:
new
Stock number:
061602
Training:
$ 450.00
Main motor:
15 HP 208-230V 3 PH
Conveyor motor:
1.5 HP, 230V 3 PHASE
Passline height:
34"-37"
Shipping (approx):
$ 750.00
Abrasive belt size:
40-1/2" X 75"
Maximum part width:
40"
Contact roller size:
8" DIA
Conveyor drive speeds:
8-40 FPM
Infeed conveyor length:
20"
Dust collector capacity:
1800 CFM
Maximum thickness capacity:
3-1/8"
Subcategory:
Sanding
Subcategory 2:
Finishers

Description

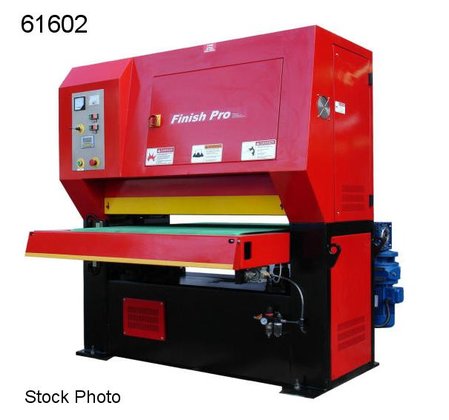

GMC FINISH PRO (NEW) MODEL FP-4075 METAL
SANDER/FINISHING DRY TYPE LINE GRAINING/
DEBURRING MACHINE
MAXIMUM PART WIDTH,,,,,,,,,,,,,,,,,, 40"
ABRASIVE BELT SIZE,,,,,,,,,,, 40-1/2" X 75"
CONTACT ROLLER SIZE,,,,,,,,,,,,,,,,, 8" DIA
PASSLINE HEIGHT,,,,,,,,,,,,,,,,,,,,, 34"-37"
MAXIMUM THICKNESS CAPACITY,,,,,,,,,, 3-1/8"
CONVEYOR DRIVE SPEEDS,,,,,,,,,,,,,,, 8-40 FPM
INFEED CONVEYOR LENGTH,,,,,,,,,,,,,, 20"
DUST COLLECTOR CAPACITY,,,,,,,,,,,,, 1800 CFM
MAIN MOTOR,,,,,,,,,,,,, 15 HP 208-230V 3 PH
OPTIONAL 460 VOLT,,,,,,,,,,,,,,,, POR
CONVEYOR MOTOR,,,,,,,,, 1.5 HP, 230V 3 PHASE
OPTIONAL 460 VOLT,,,,,,,,,,,,,,,, POR
TABLE LIFTING MOTOR,,,, 1 HP, 230V 3 PHASE
OPTIONAL 460 VOLT,,,,,,,,,,,,,,,, POR
MOTORIZED TABLE LIFT WITH COMPUTER DISPLAY
VARIABLE SPEED CONVEYOR
CONVEYOR FORWARD AND REVERSE
BELT SAFETY OVERTRAVEL SWITCHES
ELECTRONIC EYE BELT TRACKING. BELT TRACKING
ADJUSTING LEVER (BELT TRIMMER) TO READJUST
THE TRACKING SYSTEM WHEN RUNNING EXTREMELY
OUT OF PARALLEL BELTS
4-JACKSCREW TABLE SUPPORT
DOUBLE INFEED & OUTFEED PINCH ROLLS WITH
PROTECTIVE GUARDS
CONVEYOR BELT TRACKING SYSTEM
SAFETY SYSTEM WITH DISC BRAKE. AIR OPERATED
DISC BRAKES TO STOP SANDING HEAD IN 3-5
SECONDS IN THE EVENT OF LOSS OF AIR PRESSUR
OR ACTIVATION OF ANY EMERGENCY STOP DEVICE
TABLE HEIGHT DIGITAL READOUT
LOAD METER INDICATES PERCENTAGE OF FULL MOTOR
LOADS
BELT CHANGE DOOR ELECTRICALLY INTERLOCKED FOR
SAFETY PURPOSE
AIR TENSIONING OF BELT FOR ACCURATE N
TENSIONING & COMPENSATION OF BELT STRETCH
QUICK RELEASE SANDING HEAD SUPPORT FOR FAST
BELT CHANGE
DUST COLLECTION HOOD WITH 6" OUTLET IS
LOCATED ADJACENT TO ABRASIVE HEAD IN
SANDING AREA
EMERGENCY STOPS FROM ALMOST ANY POINT
NOISE LEVEL BELLOWS 82 DBA
OPERATION MANUAL, CONTROL TAGS, DANGER SIGNS,
AND WARNING LABELS IN ENGLISH ON MACHINE
ONE YEAR INDUSTRIAL WARRANTY FOR PARTS
NOTE--
MACHINE IS PRICED FOR 208-230 VOLTS
PRICING AVAIABLE FOR 460 VOLT
TOTAL AMPS 60 @ 230/3/60
COMPRESSED AIR REQUIRED 2 CFM @ 90 PSI
OPTIONAL ACCESSORIES
MODEL WDC-FP40 WET DUST COLLECTOR,,, $7800.00
MODEL HDDP-4075 HEAVY DUTY DUCTING PACKAGE,,
$ 875.00
SERVICE ENGINEER FOR START-UP & ON-SITE
TRAINING,,,,,,,,,,,,,,,,,,,,,,,,,,,, $ 450.00
SHIPPING (APPROX),,,,,,,,,,,,,,,,,,, $ 750.00
F.O.B. CALIFORNIA
