HYD-MECH H-22A DUAL POST HORZ
Location:
Dodge Center, MN, USA
Manufacturer:
Hyd-Mech saws
Model:
H-22A DUAL POST HORZ

Specifications

Condition:
new
Serial number:
Part13035000
Stock number:
061935

Description

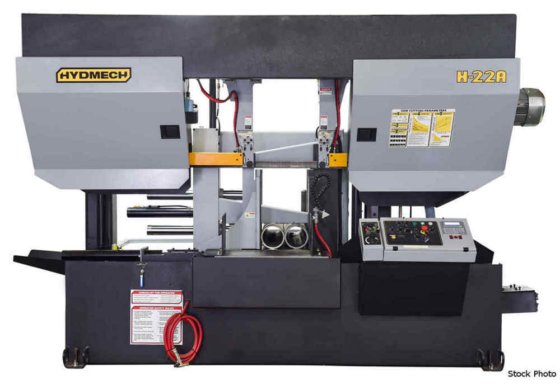

HYD-MECH (NEW) MODEL H-22A AUTOMATIC DUAL
POST HORIZONTAL BANDSAW
CAPACITY @ 90 DEGREES
RECTANGULAR/SQUARE ..... 22" X 22"
ROUND .................. 22" DIAMETER
BLADE SIZE ............... 2" X 22'6"
BLADE DRIVE .............. 10 HP
VOLTAGE .................. 208,240,480 OR 575
BLADE SPEED .............. 40 - 300 SFM
AUTOMATIC MULTI-INDEXING . 0-34"
HYDRAULIC TANK CAPACITY .. 9.5 GALLONS
COOLANT TANK CAPACITY .... 30 GALLONS
TABLE HEIGHT ............. 31"
STANDARD MACHINE FEATURES
ONE-PIECE DESIGN - NO ALIGNMENT NECESSARY
SPLIT FRONT VISE ALLOWS FOR SHORT REMNANT
CAST IRON SHUTTLE WITH AUTO MULT-INDEXING
TO 34" IN 1 STROKE W/AUTO KERF COMPENSATION
CAST IRON GUIDE ARMS
IDLER SIDE GUIDE ARM MECHANICALLY CONNECTED
TO FRONT VISE MOVEABLE JAW
TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
FULL-CAPACITY, FULL-STROKING HYD VISES
HYDRAULIC POSITIVE DOWN FEED
HIGH RESOLUTION FEED RATE VALVE
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
CAST IRON BAND WHEELS
PLC CONTROL - UP TO 99 JOBS W/5 IN QUEUE
