Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$29,000 USD
Manufacturer:
HYD-MECH
Model:
H-11A DUAL POST HORZ

Specifications

Condition:
new
Serial number:
Part # 16404000
Stock number:
061934

Description

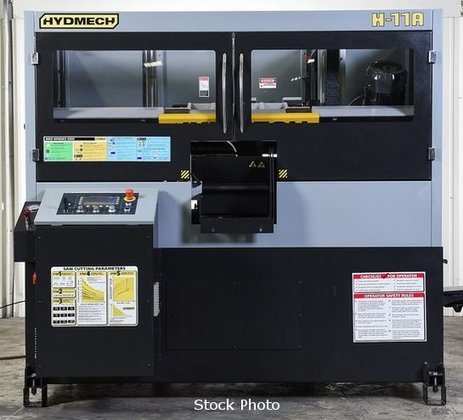

HYD-MECH (NEW) MODEL H-11A AUTOMATIC DUAL
POST HORIZONTAL BANDSAW
CAPACITY @ 90 DEG
RECTANGULAR ............. 11" X 13.5"
SQUARE .................. 11" X 11"
ROUND ................... 11" DIAMETER
BLADE SIZE ................ 1-1/4" X 14'9"
BLADE DRIVE ............... 6 HP
BLADE SPEED ............... 49 - 380 SFM
COOLANT TANK CAPACITY ..... 53 GALLON
AUTOMATIC MULT-INDEXING ... 0-16"
REMNANT LENGTH ............ 1.5"
TABLE HEIGHT .............. 34"
MACHINE VOLTAGE ........... 240 OR 480 VOLT
STANDARD MACHINE FEATURES
HEAVY-DUTY CAST IRON SAW HEAD
SPLIT FRONT VISE ALLOWS FOR 1.5" REMNANT
CAST IRON SHUTTLE WITH AUTO MULT-INDEXING
UP TO 16" IN A SINGLE STROKE
BALL SCREW AND STEPPER SHUTTLE MOTOR
ON-DEMAND HYDRAULICS SAVE ENERGY
CAST IRON GUIDE ARMS ON LINEAR RAILS
ADJUSTABLE HYD-POWERED IDLER SIDE GUIDE ARM
TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
FULL-CAPACITY, FULL-STROKING HYD VISES
HYDRAULIC POSITIVE DOWN FEED
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
CAST IRON BAND WHEELS
PLC CONTROL - UP TO 100 JOBS, 20 IN QUEUE
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
AUTOMATIC CHIP REMOVAL AUGER
EASY-ACCESS ELECTRICAL PANEL & HYDRAULICS
BLADE BREAKAGE SWITCH
BLADE DEVIATION MONITOR
DESIGNED FOR SAFETY WITH SAW-IN-A-BOX STYLE
OUT OF STOCK SWITCH
MECHANICAL BLADE TENSIONING WITH DRO
REPLACEABLE CARBIDE GUIDE INSERTS
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH-DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
FULL CAPACITY OVERHEAD BUNDLING ... POR
VARIABLE VISE PRESSURE ............ POR
VERTICAL ROLLERS .................. POR
MIST LUBRICATION SYSTEM ........... POR
POWER TRANSFORMERS ................ POR
IDLER ROLLER CONVEYORS ............ POR
POWERED ROLLER CONVEYORS .......... POR
