Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$64,500 USD
Manufacturer:
Hyd-Mech saws
Model:
V-25 BANDSAW

Specifications

Condition:
new
Serial number:
Part # 14040000
Stock number:
061861
Voltage:
208,240,480 OR 575
Blade size:
1.5" X 21'
Blade drive:
10 HP
Blade speed:
75 - 350 SFM
Table height:
44"
Subcategory:
Bandsaws, vertical

Description

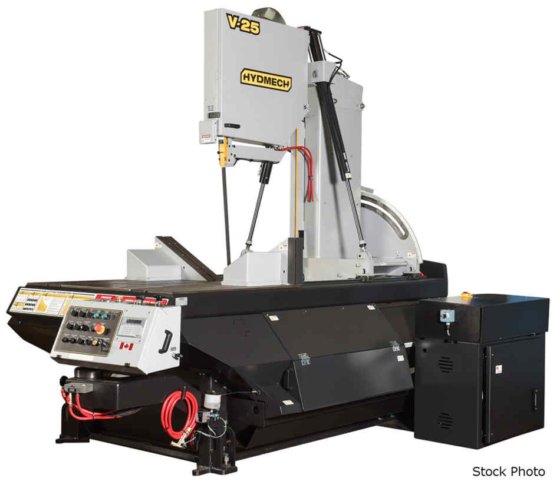

HYD-MECH (NEW) MODEL V-25 VERTICAL MITERING
BANDSAW
CAPACITY RECTANGULAR SQUARE/ROUND
AT 90 DEGREES 30" X 25" 25"
AT 45 DEGREES 21" X 25" 21"
AT 60 DEG RIGHT 14.5" X 25" 14.5"
AT 60 DEG LEFT 13.5" X 25" 13.5"
BLADE SIZE ............... 1.5" X 21'
BLADE DRIVE .............. 10 HP
VOLTAGE .................. 208,240,480 OR 575
BLADE SPEED .............. 75 - 350 SFM
HYDRAULIC TANK CAPACITY .. 7 GALLONS
COOLANT TANK CAPACITY .... 38 GALLONS
TABLE HEIGHT ............. 44"
STANDARD MACHINE FEATURES
CONTROL PROVIDES HYDRAULIC MITERING FROM 60
DEGREES LEFT TO 60 DEGREES RIGHT
6 DEGREE CANTED HEAD
DIGITAL ANGLE DISPLAY
2 FULL STROKING HYDRAULIC VISES
POWERED MOVABLE GUIDE ARM
TRUE DIRECT BLADE DRIVE - NO BELTS/PULLEYS
CAST IRON BAND WHEELS
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
EASY ACCESS ELECTRICAL PANEL AND HYDRAULICS
BLADE BREAKAGE SWITCH
HYDRAULIC BAND TENSIONING WITH DRO
REPLACEABLE CARBIDE GUIDE INSERTS
3 HP HYDRAULIC PUMP FOR SYSTEM PRESSURE
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING ....... POR
TALL SQUARE VISE INSERTS .......... POR
NON-DRIVEN POP-UP FEED ROLLER ..... POR
VARIABLE VISE PRESSURE ............ POR
MIST LUBRICATION .................. POR
IDLER CONVEYORS ................... POR
POWERED CONVEYORS ................. POR
CHIP BUCKET WITH PUMP ............. POR
HYDRAULIC CHIP CONVEYOR ........... POR
BRIDGE INTERFACE BRACKET .......... POR
POWERED BRIDGE/INTERFACE BRACKETS . POR
