Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$50,500 USD
Manufacturer:
Hyd-Mech saws
Model:
M-16A BANDSAW

Specifications

Condition:
new
Serial number:
Part # 12010000
Stock number:
061859
Voltage:
208,240,480, OR 575
Work load:
8,000 LBS
Blade size:
1-1/4" X 18'6"
Blade drive:
7-1/2 HP, 3 PHASE
Blade speed:
50-350 SFM
Table height:
32"

Description

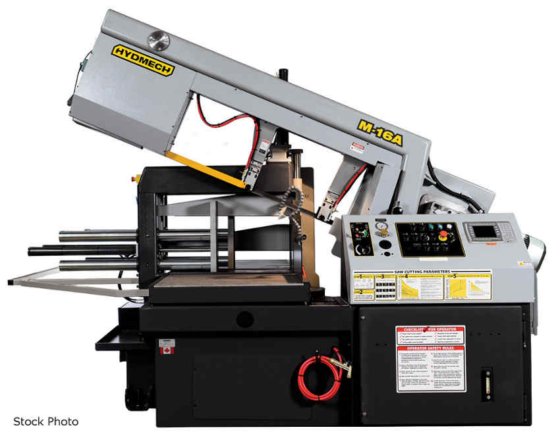

HYD-MECH (NEW) MODEL M-16A AUTOMATIC PIVOT
STYLE BANDSAW
CAPACITY-DEGREES RECTANGULAR ROUND
90 16" X 25" 16"
45 16" X 15" 16"
30 16" X 09" 11"
BLADE SIZE .............. 1-1/4" X 18'6"
BLADE DRIVE ............. 7-1/2 HP, 3 PHASE
VOLTAGE ................. 208,240,480, OR 575
BLADE SPEED ............. 50-350 SFM
COOLANT TANK CAPACITY ... 9 GALLONS
WORK LOAD ............... 8,000 LBS
TABLE HEIGHT ............ 32"
STANDARD MACHINE FEATURES
AUTOMATIC MITERING - "GO TO" ANGLE FUNCTION
AUTO MULTI-INDEXING UP TO 33"/SINGLE STROKE
FULL-CAPACITY, FULL-STROKING HYD VISES
STEEL GUIDE ARMS MOUNTED ON LINEAR RAILS
ADJUSTABLE HYD-POWERED IDLER SIDE GUIDE ARM
TRUE DIRECT BLADE DRIVE - NO BELTS/PULLEYS
HYDRAULIC POSITIVE DOWNFEED
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
CAST IRON BAND WHEELS
PLC CONTROL - UP TO 99 JOBS, 5 IN QUEUE
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
AUTOMATIC CHIP REMOVAL AUGER
EASY-ACCESS ELECTRICAL PANEL & HYDRAULICS
BLADE BREAKAGE SWITCH
HARDENED REPLACEABLE WEAR PLATES ON VISES
HYDRAULIC BAND TENSIONING
HYDRAULIC CARBIDE GUIDE TENSIONING
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH-DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
FULL CAPACITY OVERHEAD BUNDLING ... POR
REMOTE CONSOLE .................... POR
OUT OF STOCK SWITCH ............... POR
VERTICAL ROLLERS .................. POR
MIST LUBRICATION SYSTEM ........... POR
IDLER ROLLER CONVEYORS ............ POR
POWERED ROLLER CONVEYORS .......... POR
VARIABLE VISE PRESSURE ............ POR
BLADE DEVIATION MONITOR ........... POR
CHIP BUCKET ....................... POR
