HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$58,800 USD
Manufacturer:
HYD-MECH
Model:
H-18A BANDSAW

Specifications

Condition:
new
Serial number:
Part # 13025000
Stock number:
061800
Round:
18" DIAMETER
Voltage:
208,240,480 OR 575
Blade size:
1-1/2" X 19'2"
Blade drive:
10 HP
Blade speed:
50 - 350 SFM
Table height:
31"
Rectangular/square:
18" X 18"

Description

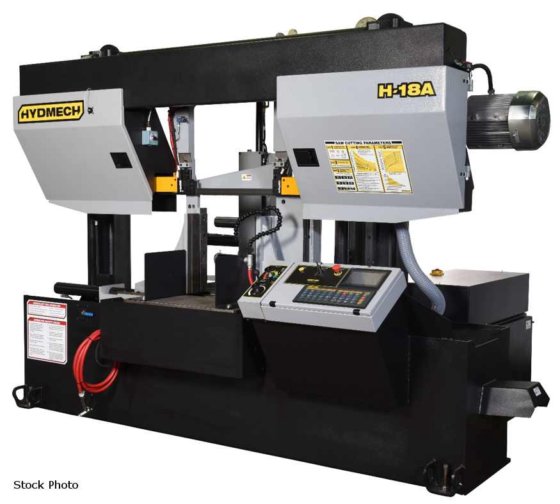

HYD-MECH (NEW) MODEL H-18A AUTOMATIC DUAL
POST HORIZONTAL BANDSAW
CAPACITY @ 90 DEG
RECTANGULAR/SQUARE ..... 18" X 18"
ROUND .................. 18" DIAMETER
BLADE SIZE ............... 1-1/2" X 19'2"
BLADE DRIVE .............. 10 HP
VOLTAGE .................. 208,240,480 OR 575
BLADE SPEED .............. 50 - 350 SFM
AUTOMATIC MULTI-INDEXING . 0-34"
HYDRAULIC TANK CAPACITY .. 9.5 GALLONS
COOLANT TANK CAPACITY .... 30 GALLONS
TABLE HEIGHT ............. 31"
STANDARD MACHINE FEATURES
ONE-PIECE DESIGN - NO ALIGNMENT NECESSARY
SPLIT FRONT VISE ALLOWS FOR SHORT REMNANT
CAST IRON SHUTTLE WITH AUTO MULT-INDEXING
TO 34" IN 1 STROKE W/AUTO KERF COMPENSATION
CAST IRON GUIDE ARMS
IDLER SIDE GUIDE ARM MECHANICALLY CONNECTED
TO FRONT VISE MOVEABLE JAW
TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
FULL-CAPACITY, FULL-STROKING HYD VISES
HYDRAULIC POSITIVE DOWN FEED
HIGH RESOLUTION FEED RATE VALVE
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
CAST IRON BAND WHEELS
PLC CONTROL - UP TO 99 JOBS W/5 IN QUEUE
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
AUTOMATIC CHIP REMOVAL AUGER
EASY-ACCESS ELECTRICAL PANEL & HYDRAULICS
BLADE BREAKAGE SWITCH
HYDRAULIC BAND TENSIONING WITH DRO
HYDRAULIC CARBIDE GUIDE TENSIONING
HARDENED, REPLACEABLE WEAR PLATES
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH-DOWN HOSE
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING ....... POR
VARIABLE VISE PRESSURE ............ POR
BLADE DEVIATION MONITOR ........... POR
VERTICAL ALIGNMENT ROLLERS ........ POR
PEDESTAL CONTROL .................. POR
REMOTE CONSOLE .................... POR
MIST LUBRICATION SYSTEM ........... POR
OUT OF STOCK SWITCH ............... POR
LASER LIGHT ....................... POR
ROLLER DISCHARGE TABLE ............ POR
IDLER CONVEYORS ................... POR
POWERED CONVEYORS ................. POR
