Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Hyd-Mech saws
Model:
M-20A BANDSAW

Specifications

Condition:
new
Serial number:
Part120310000
Stock number:
061799

Description

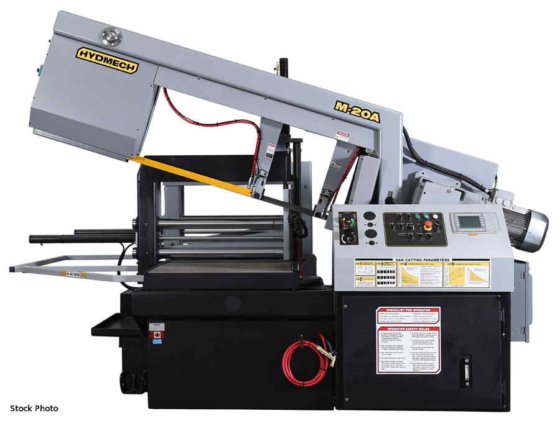

HYD-MECH (NEW) MODEL M-20A AUTOMATIC PIVOT
STYLE BANDSAW
CAPACITY-DEGREES RECTANGULAR ROUND
90 20" X 30" 20"
45 20" X 19" 20"
30 20" X 12" 14"
BLADE SIZE .............. 1-1/2" X 20'6"
BLADE DRIVE ............. 10 HP, 3 PHASE
VOLTAGE ................. 208,240,480, OR 575
BLADE SPEED ............. 50-350 SFM
COOLANT TANK CAPACITY ... 9 GALLONS
WORK LOAD ............... 8,000 LBS
TABLE HEIGHT ............ 32"
STANDARD MACHINE FEATURES
AUTOMATIC MITERING - "GO TO" ANGLE FUNCTION
AUTO MULTI-INDEXING UP TO 33"/SINGLE STROKE
FULL-CAPACITY, FULL-STROKING HYD VISES
STEEL GUIDE ARMS MOUNTED ON LINEAR RAILS
ADJUSTABLE HYD-POWERED IDLER SIDE GUIDE ARM
TRUE DIRECT BLADE DRIVE - NO BELTS/PULLEYS
HYDRAULIC POSITIVE DOWNFEED
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
CAST IRON BAND WHEELS
PLC CONTROL - UP TO 99 JOBS, 5 IN QUEUE
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
AUTOMATIC CHIP REMOVAL AUGER
