Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Hyd-Mech saws
Model:
S-20 BANDSAW

Specifications

Condition:
new
Serial number:
Part # 11310000
Stock number:
061642
Blade:
1" X 14'10"
Work load:
5,000 LBS
Blade drive:
3 HP, 3 PHASE
Blade speed:
45-330 SFM
Coolant tank:
6 GALLONS
Table height:
31"
Machine voltage:
208,240,480 OR 575

Description

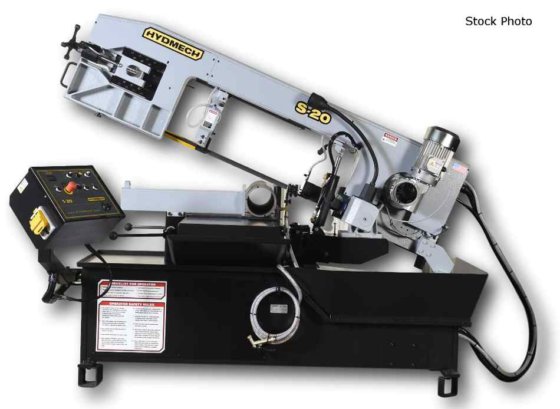

HYD-MECH (NEW) MODEL S-20 MANUAL PIVOT STYLE
BANDSAW
CAPACITY RECTANGLE ROUND
90 DEGREES 13" X 18.00" 13"
45 DEGREES 13" X 10.75" 12"
30 DEGREES 13" X 07.75" 8.5"
BLADE .................... 1" X 14'10"
BLADE DRIVE .............. 3 HP, 3 PHASE
MACHINE VOLTAGE .......... 208,240,480 OR 575
BLADE SPEED .............. 45-330 SFM
WORK LOAD ................ 5,000 LBS
TABLE HEIGHT ............. 31"
COOLANT TANK ............. 6 GALLONS
STANDARD MACHINE FEATURES
EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
TRUE DIRECT DRIVE BLADE - NO BELTS/PULLEYS
36" MATERIAL IN-FEED ROLLER TABLE
19" MATERIAL OUT-FEED ROLLER TABLE
HEAVY-DUTY SLIDING VISE JAW
MECHANICAL BLADE TENSIONING WITH DRO
CAST IRON BAND WHEELS
SWING-AWAY CONTROL
CAST IRON GUIDE ARMS
ADJUSTABLE IDLER SIDE GUIDE ARM
REPLACABLE BLADE BRUSH
ROBUST STEEL BASE
EASY-TO-READ ANGLE SCALE WITH ANGLE LOCKING
GRAVITY HEAD FEED
REPLACEABLE CARBIDE GUIDE INSERTS
SAFETY DOOR INTERLOCKS
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
MIST LUBRICATION ................. POR
IDLER CONVEYORS .................. POR
WORK STOP ........................ POR
SINGLE PHASE - 220 VOLT .......... POR
TO SEE A VIDEO OF THIS MACHINE, CLICK ON:
