Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$39,000 USD
Manufacturer:
HYD-MECH
Model:
H-14A DUAL HORIZ

Specifications

Condition:
new
Serial number:
Part # 16405000
Stock number:
061619
Round:
14" DIAMETER
Voltage:
240 OR 480 VOLT
Blade size:
1-1/4" X 15'2"
Blade drive:
8.8 HP
Blade speed:
49 - 380 SFM
Table height:
34"
Remnant length:
4.7"
Rectangular/square:
14" X 14"
Coolant tank capacity:
50 GALLON

Description

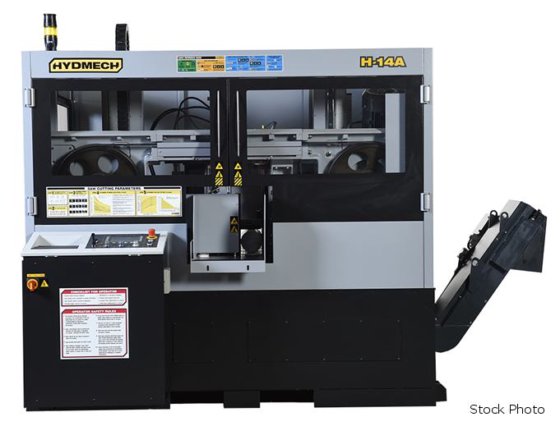

HYD-MECH (NEW) MODEL H-14A AUTOMATIC DUAL
POST HORIZONTAL BANDSAW
CAPACITY @ 90 DEG
RECTANGULAR/SQUARE ....... 14" X 14"
ROUND .................... 14" DIAMETER
BLADE SIZE ................. 1-1/4" X 15'2"
BLADE DRIVE ................ 8.8 HP
VOLTAGE .................... 240 OR 480 VOLT
BLADE SPEED ................ 49 - 380 SFM
AUTOMATIC MULTI-INDEXING ... 0-24"
REMNANT LENGTH ............. 4.7"
COOLANT TANK CAPACITY ...... 50 GALLON
TABLE HEIGHT ............... 34"
STANDARD MACHINE FEATURES
HEAVY-DUTY CAST IRON SAW HEAD
SPLIT FRONT VISE ALLOWS FOR 4.7" REMNANT
CAST IRON SHUTTLE WITH AUTO MULT-INDEXING
TO 24" IN 1 STROKE W/AUTO KERF COMPENSATION
BALL SCREW AND STEPPER SHUTTLE MOTOR
ON-DEMAND HYDRAULICS SAVE ENERGY
CAST IRON GUIDE ARMS ON LINEAR RAILS
ADJUSTABLE HYD-POWERED IDLER SIDE GUIDE
TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
FULL-CAPACITY, FULL-STROKING HYD VISES
HYDRAULIC POSITIVE DOWN FEED
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
CAST IRON BAND WHEELS
SWING-AWAY AUTOMATIC TOUCH SCREEN CONTROL
PLC CONTROL - UP TO 100 JOBS W/20 IN QUEUE
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
AUTOMATIC CHIP REMOVAL AUGER
EASY-ACCESS ELECTRICAL PANEL & HYDRAULICS
BLADE BREAKAGE SWITCH
BLADE DEVIATION MONITOR
DESIGNED FOR SAFETY WITH SAW-IN-A-BOX STYLE
OUT OF STOCK SWITCH
ELECTRONIC BAND TENSIONING WITH DRO
REPLACEABLE CARBIDE GUIDE INSERTS
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH-DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING* ...... POR
*INCREASES REMNANT LENGTH TO 11"
*REDUCES SHUTTLE STROKE TO 21.5"
VARIABLE VISE PRESSURE ............ POR
POWER TRANSFORMERS ................ POR
VERTICAL ROLLERS .................. POR
MIST LUBRICATION SYSTEM ........... POR
SHORT REMNANT OF 0.98** ........... POR
**CAN'T USE WITH OVERHEAD BUNDLING
IDLER CONVEYORS ................... POR
POWERED CONVEYORS ................. POR
