HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Manufacturer:
Hyd-Mech saws
Model:
S-23P BANDSAW

Specifications

Condition:
new
Serial number:
Part # 11530000
Stock number:
061600
Workload:
5,000 LBS
Blade size:
1.25" X 16'10"
Blade drive:
8.8 HP
Blade speed:
75 - 350 SFM
Table height:
33"
Machine voltage:
208,240,480,575
Coolant tank capacity:
9 GALLONS

Description

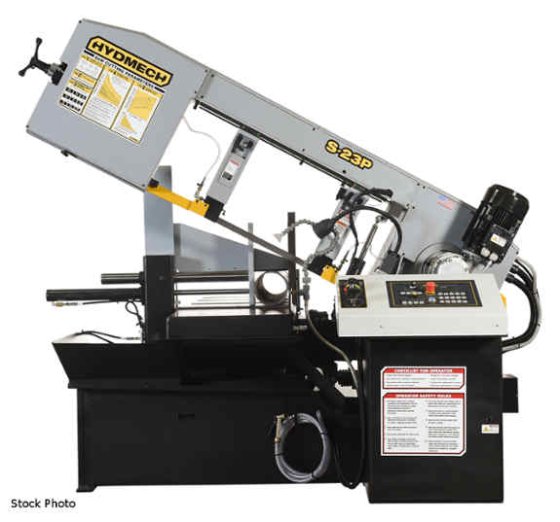

HYD-MECH (NEW) MODEL S-23P SEMI-AUTOMATIC
PIVOT STYLE BANDSAW
CAPACITY RECTANGULAR ROUND
90 DEGREE 16" X 20" 16"
45 DEGREE 16" X 14" 14"
30 DEGREE 16" X 9.5" 9.5"
BLADE SIZE .................. 1.25" X 16'10"
BLADE DRIVE ................. 8.8 HP
MACHINE VOLTAGE ............. 208,240,480,575
BLADE SPEED ................. 75 - 350 SFM
TABLE HEIGHT ................ 33"
COOLANT TANK CAPACITY ....... 9 GALLONS
WORKLOAD .................... 5,000 LBS
STANDARD EQUIPMENT
ROBUST STEEL BASE
EASY-TO-READ ANGLE SCALE WITH ANGLE LOCKING
20" OUTFEED TABLE
EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
CAST IRON GUIDE ARMS
ADJUSTABLE IDLER SIDE GUIDE ARM
REPLACEABLE CARBIDE GUIDE INSERTS
MECHANICAL BAND TENSIONING WITH DRO
EASY-ACCESS ELECTRICAL PANEL
FLOOD COOLANT WITH WASH DOWN HOSE
BLADE BREAKAGE SWITCH
CAST IRON BAND WHEELS
REPLACEABLE BLADE BRUSH
HYDRAULIC POSITIVE DOWN FEED
FULL CAPACITY, FULL STROKING HYDRAULIC VISE
TRUE DIRECT BLADE DRIVE - NO BELTS/PULLEYS
ON-DEMAND HYDRAULICS SAVE ENERGY
SEMI-AUTOMATIC PLC CONTROL
SAFETY DOOR INTERLOCKS
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING ..... POR
MIST LUBRICATION ................ POR
IDLER CONVEYORS ................. POR
VARIABLE VISE PRESSURE .......... POR
WORK STOP ....................... POR
