Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$29,500 USD
Manufacturer:
HYD-MECH
Model:
C350-2CNC COLD SAW

Specifications

Condition:
new
Serial number:
Part # 16423200
Stock number:
061589
Subcategory:
Cold saws

Description

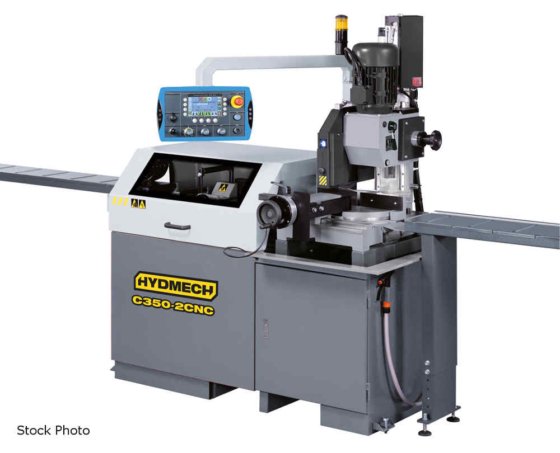

HYD-MECH (NEW) MODEL C350-2CNC COLUMN COLD
SAW
CAPACITY
HOLLOW 90 DEG 45 LEFT/RIGHT 60 LEFT
ROUND 4.5" 4.25" 3.5"
SQUARE 3.75" 3.75" 3"
RECT 7 X 3.75" 4.75 X 3.75" 3.5 X 3.75"
SOLID
ROUND 3.75" 3" 2.5"
SQUARE 3.5" 2" 1.5"
RECT 3.5 X 3.5" 2.5 X 3.5" 1.75 X 3.5"
BLADE SIZE - MAXIMUM ........ 14"
BLADE DRIVE ................. 3.5 HP
MACHINE VOLTAGE ............. 240 OR 480
STANDARD REMNANT LENGTH ..... 5.9"
BLADE SPEEDS ................ 15 - 90 RPM
STANDARD MACHINE FEATURES
AUTOMATIC OPERATION
FEED RATE CONTROL DIAL
AUTO MULTI-INDEXING UP TO 23" IN 1 STROKE
AUTOMATIC KERF COMPENSATION
POWERED BY BALL SCREW AND STEPPER MOTOR
HEAVY-DUTY SAW HEAD MOVES ON ADJUSTABLE
DUAL PRECISION LINEAR RAILS
MITERS 45 DEGREES LEFT & RIGHT, 60 DEG LEFT
VARIABLE BLADE SPEEDS OF 15 TO 90 RPM
ANTI-BURR CLAMP WITH DOUBLE LOCKING SYSTEM
VERTICAL PNEUMATIC VISE
PNEUMATIC VISE SLIDES ON DOVETAIL
ENCLOSED STEEL BASE WITH CHIP DRAWER
COOLANT TANK IN BASE
REPLACEABLE BLADE BRUSH
CONTROL PANEL WITH MAIN DISCONNECT
PROGRAMMABLE SAWING STROKE
DIGITAL DISPLAY FOR MACHINE DIAGNOSTICS
STORES UP TO 99 JOBS
FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
WASH DOWN HOSE
1 BLADE INCLUDED (350 X 2.5 X 32 Z=180)
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
2ND PNEUMATIC HORIZONTAL OPERATING VISE POR
MIST LUBRICATION SYSTEM ............... POR
FLIP-OVER MATERIAL STOPS WITH 60" RULER POR
R2 RULER EXT FOR OUT FEED ROLLER TABLES POR
K40 5' ROLLER TABLE ................... POR
HSS OXIDE COATED BLADE (350 X 2.5 X 32) POR
SHORT REMNANT ......................... POR
