HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$20,500 USD
Manufacturer:
HYD-MECH
Model:
C370-2SI COLD SAW

Specifications

Condition:
new
Serial number:
Part # 16421200
Stock number:
061588
Blade drive:
7.5 HP
Blade speeds:
15 - 150 RPM
Machine voltage:
240 OR 480
Blade size - maximum:
14.5"
Blade size - minimum:
12"
Subcategory:
Cold saws

Description

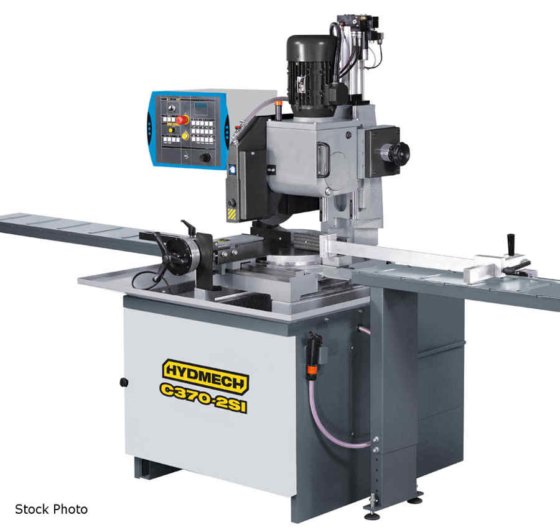

HYD-MECH (NEW) MODEL C370-2SI SEMI-AUTOMATIC
COLUMN COLD SAW
CAPACITY
HOLLOW 90 DEG 45 LEFT/RIGHT 60 LEFT
ROUND 4.75" 4.5" 4.5"
SQUARE 4-1/3" 4-1/3" 3.5"
RECT 7 X 3.75" 4.75 X 3.75" 3.5 X 3.75"
SOLID
ROUND 4.5" 2.75" 2"
SQUARE 4" 2.5" 2"
RECT 7 X 3.75" 2.75 X 3.75" 2" X 3.75"
BLADE SIZE - MAXIMUM ........ 14.5"
BLADE SIZE - MINIMUM ........ 12"
BLADE DRIVE ................. 7.5 HP
MACHINE VOLTAGE ............. 240 OR 480
BLADE SPEEDS ................ 15 - 150 RPM
STANDARD MACHINE FEATURES
SEMI-AUTOMATIC OPERATION
ROBUST SAW HEAD MOVES ON ADJUSTABLE DUAL
PRECISION LINEAR RAILS
MITERS 45 DEGREES LEFT & RIGHT, 60 DEG LEFT
INFINITELY VARIABLE BLADE SPEED 15-150 RPM
ANTI-BURR CLAMP WITH DOUBLE LOCKING SYSTEM
VERTICAL PNEUMATIC VISE
PNEUMATIC VISE SLIDES ON DOVETAIL
ENCLOSED STEEL BASE WITH CHIP DRAWER
COOLANT TANK IN BASE
REPLACEABLE BLADE BRUSH
CONTROL PANEL WITH MAIN DISCONNECT
PROGRAMMABLE SAWING STROKE
SAW HEAD FEED RATE CONTROL
LED DISPLAY FOR MACHINE DIAGNOSTICS
ADJUSTABLE MATERIAL STOP WITH RULER
FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
1 BLADE INCLUDED (370 X 3 X 32 Z=200)
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
FOOT PEDAL CTRL WITH EMERGENCY STOP ... POR
2ND PNEUMATIC HORIZONTAL OPERATING VISE POR
MIST LUBRICATION SYSTEM ............... POR
FLIP-OVER MATERIAL STOPS WITH 60" RULER POR
R2 RULER EXT FOR OUT FEED ROLLER TABLES POR
K40 5' ROLLER TABLE ................... POR
HSS OXIDE COATED BLADE (370 X 3 X 32) . POR
