HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$47,500 USD
Manufacturer:
Hyd-Mech saws
Model:
C370-CNC COLD SAW

Specifications

Condition:
new
Serial number:
Part # 16471000
Stock number:
061590
Blade drive:
7.5 HP
Blade speeds:
15 - 150 RPM
Machine voltage:
240 OR 480
Blade size - maximum:
14.5"
Blade size - minimum:
12"
Standard remnant length:
10"
Subcategory:
Cold saws

Description

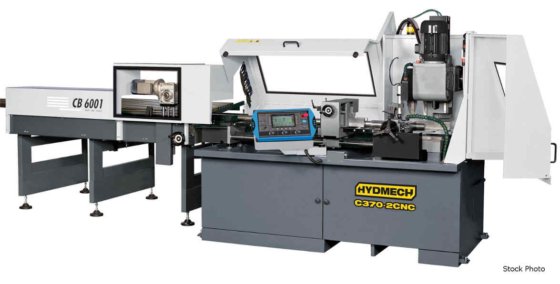

HYD-MECH (NEW) MODEL C370-CNC AUTOMATIC
COLUMN COLD SAW
CAPACITY
HOLLOW 90 DEG 45 LEFT/RIGHT 60 LEFT
ROUND 4.75" 4.5" 4.5"
SQUARE 4.25" 4" 3.5"
RECT 7" X 4" 4.75" X 4" 3.5" X 3.5"
SOLID
ROUND 4.75" 2.75" 2"
SQUARE 4.25" 2.75" 2"
RECT 7" X 4" 2.75" X 4" 2" X 4"
BLADE SIZE - MAXIMUM ........ 14.5"
BLADE SIZE - MINIMUM ........ 12"
BLADE DRIVE ................. 7.5 HP
MACHINE VOLTAGE ............. 240 OR 480
STANDARD REMNANT LENGTH ..... 10"
BLADE SPEEDS ................ 15 - 150 RPM
STANDARD MACHINE FEATURES
AUTOMATIC OPERATION WITH SEMI-AUTO MODE
MULTI-INDEXING UP TO 40" IN 1 STROKE
AUTOMATIC KERF COMPENSATION
POWERED BY BALL SCREW AND STEPPER MOTOR
SHUTTLE FEED CARRIAGE WITH SIDE MOVEMENT
ELECTRO MECHANIC CYLINDER CONTROLS SAW HEAD
ROBUST SAW HEAD MOVES ON ADJUSTABLE DUAL
PRECISION LINEAR RAILS
MITERS 45 DEGREES LEFT & RIGHT, 60 DEG LEFT
BLADE DRIVE COUPLED TO SAW HEAD
VARIABLE SPEED DRIVE 15-150 RPM
VERTICAL PNEUMATIC VISE
EXTENDED JAWS ALLOW FOR SHORT REMNANT
PNEUMATIC VISE SLIDES ON DOVETAIL
ENCLOSED STEEL BASE WITH CHIP DRAWER
COOLANT TANK IN BASE
REPLACEABLE BLADE BRUSH
CONTROL PANEL W/EMERGENCY STOP
PROGRAMMING CONSOLE STORES UP TO 32 JOBS
DIGITAL DISPLAY FOR MACHINE DIAGNOSTICS
FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
1 BLADE INCLUDED (370 X 3 X 32 Z=200)
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
AUTOMATIC MITERING .................... POR
2ND PNEUMATIC HORIZONTAL OPERATING VISE POR
MIST LUBRICATION SYSTEM ............... POR
LOADING TABLES ........................ POR
AUTOMATIC CHIP CONVEYOR ............... POR
SHORT REMNANT (6.2") .................. POR
BUNDLE JAWS ........................... POR
