HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$42,500 USD
Manufacturer:
Hyd-Mech saws
Model:
CNF400-CNC COLD SAW

Specifications

Condition:
new
Serial number:
Part # 16481000
Stock number:
061591
Blade size:
1-17/64" X 15.75"
Blade drive:
6 HP
Blade speeds:
1700 AND 3400 RPM
Machine voltage:
240 OR 480
Subcategory:
Cold saws

Description

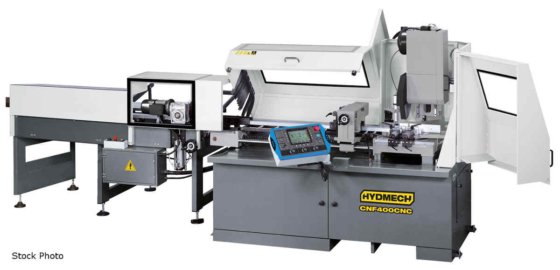

HYD-MECH (NEW) MODEL CNF400-CNC AUTOMATIC
COLUMN COLD SAW
CAPACITY
HOLLOW 90 DEG 45 LEFT/RIGHT 60 LEFT
ROUND 5" 4.5" 4.5"
SQUARE 4.75" 4" 3.5"
RECT 7" X 4" 4.75" X 4" 3.5" X 3.5"
SOLID
ROUND 5" 2.75" 2"
SQUARE 4.75" 2.75" 2"
BLADE SIZE ................ 1-17/64" X 15.75"
BLADE DRIVE ............... 6 HP
MACHINE VOLTAGE ........... 240 OR 480
STANDARD REMNANT LENGTH ... 15"
BLADE SPEEDS .............. 1700 AND 3400 RPM
STANDARD MACHINE FEATURES
CARBIDE-TIPPED BLADE
AUTOMATIC OPERATION
MULTI-INDEXING UP TO 40" IN 1 STROKE
AUTOMATIC KERF COMPENSATION
POWERED BY BALL SCREW AND STEPPER MOTOR
HEAD STROKE SET DIRECTLY FROM CONTROL PANEL
FLASHING WARNING LIGHT IF CYCLE STOPS
SHUTTLE FEED CARRIAGE WITH SIDE MOVEMENT
PNEUMATIC CYLINDER CONTROLS SAW HEAD
ROBUST SAW HEAD MOVES ON ADJUSTABLE DUAL
PRECISION LINEAR RAILS
MITERS 45 DEGREES LEFT & RIGHT, 60 DEG LEFT
. BLADE DRIVE COUPLED TO SAW HEAD
2 BLADE SPEEDS
PNEUMATIC VERTICAL VISE
PNEUMATIC HORIZ VISE SLIDES ON DOVETAIL
ENCLOSED STEEL BASE COOLANT TANK
REPLACEABLE BLADE BRUSH
CONTROL PANEL W/EMERGENCY STOP
PROGRAMMING CONSOLE STORES UP TO 32 JOBS
DIGITAL DISPLAY FOR MACHINE DIAGNOSTICS
AUTOMATIC MIST LUBRICATION DURING THE CUT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
AUTOMATIC MITERING .................... POR
LOADING TABLES ........................ POR
SHORT REMNANT (5.9") .................. POR
FOOT PEDAL WITH EMERGENCY STOP ........ POR
CHIP COLLECTOR ........................ POR
DOUBLE SUCTION SYSTEM ................. POR
COMB JAWS ............................. POR
