Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$7,200 USD
Manufacturer:
HYD-MECH
Model:
DM-10 BANDSAW

Specifications

Condition:
new
Serial number:
Part # 16031000
Stock number:
061583
Blade size:
1" X 9'8"
Blade drive:
2/2.5 HP
Table height:
34"
Machine voltage:
208,240,480 OR 575
Optional features:
PRICE ON REQUEST

Description

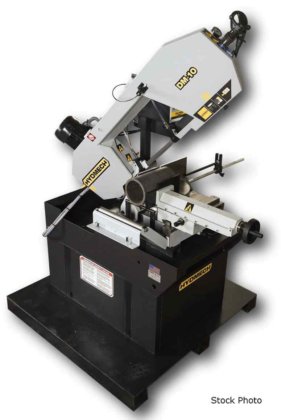

HYD-MECH (NEW) MODEL DM-10 DOUBLE MITER
BANDSAW
CAPACITY-DEGREES RECTANGULAR ROUND SQUARE
90 9.5" X 11" 10" 9"
45 LEFT 8.25" X 7" 7.25" 7"
30 LEFT 5" X 4.5" 4.5" 4.5"
45 RIGHT 6.25" X 4.5" 5.75" 5"
BLADE SIZE ............... 1" X 9'8"
BLADE DRIVE .............. 2/2.5 HP
MACHINE VOLTAGE .......... 208,240,480 OR 575
BLADE SPEED - 2 SPEED .... 165-325 SFM
COOLANT TANK CAPACITY .... 3.5 GALLONS
TABLE HEIGHT ............. 34"
STANDARD MACHINE FEATURES
MANUALLY-OPERATED EASY-SWING CAST SAW HEAD
QUICK RELEASE CAST IRON VISE-DOVETAIL WAYS
ROTATING TABLE WITH CUT LINE
BAND TENSION INDICATOR
MANUAL GRAVITY HEAD FEED
REPLACEABLE BLADE BRUSH
SMALL FOOTPRINT
ROBUST STEEL BASE
EASY-TO-READ ANGLE SCALE
ADJUSTABLE GUIDE ARM
REPLACEABLE CARBIDE GUIDE INSERTS
MECHANICAL BLADE TENSIONING
SAFETY DOOR INTERLOCKS
FLOOD COOLANT
WORK STOP
OPTIONAL FEATURES .......... PRICE ON REQUEST
MIST LUBRICATION ...................... POR
SINGLE PHASE .......................... POR
PNEUMATIC VISE WITH FOOT PEDALS ....... POR
R2 WORKSTOP FOR K110 TABLE ............ POR
K110-5' INFEED/OUTFEED ROLLER ......... POR
ADAPTER PLATE FOR K110 TABLE .......... POR
TO SEE A VIDEO OF THIS MACHINE, CLICK ON:
