HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,700 USD
Manufacturer:
Hyd-Mech saws
Model:
P350 PIVOT COLD SAW

Specifications

Condition:
new
Serial number:
Part # 16414000
Stock number:
061582
Blade drive:
3 HP
Blade speeds:
30 AND 60 RPM
Machine voltage:
240 OR 480
Blade size - maximum:
14"
Blade size - minimum:
12"
Subcategory:
Cold saws

Description

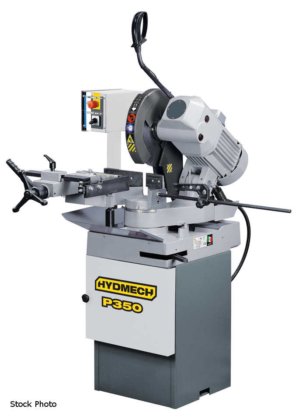

HYD-MECH (NEW) MODEL P350 PIVOT ARM COLD SAW
CAPACITY
H0LLOW 90 DEGREES 45 LEFT 45 RIGHT
ROUND 4-1/2" 4" 3"
SQUARE 4" 3-1/3" 3"
RECT 5-1/8" X 3-1/2" X 3.5" X
3-1/8" 3-1/3" 2.5"
CAPACITY
SOLID 90 DEGREES 45 LEFT 45 RIGHT
ROUND 2" 1.5" 1.5"
SQUARE 2" 1.5" 1.5"
RECT 2" X 2" 2" X 1.5" 2" X 1.5"
BLADE SIZE - MAXIMUM ........ 14"
BLADE SIZE - MINIMUM ........ 12"
BLADE DRIVE ................. 3 HP
MACHINE VOLTAGE ............. 240 OR 480
BLADE SPEEDS ................ 30 AND 60 RPM
STANDARD MACHINE FEATURES
MANUALLY OPERATED
SAFETY SPRING-LOADED START/STOP SWITCH
ROBUST SAW HEAD MITERS 45 DEG LEFT & RIGHT
SAW BASE INCLUDED
MOVEMENT OF BOTH HEAD AND VISE TO PERMIT
SLOTTING OR LENGTHWISE CUTS
VISE QUICK CLAMP AND RELEASE LEVER
ADJUSTABLE MANUAL VISE WITH ANTI-BURR CLAMP
CLAMPS BOTH SIDES OF THE CUT
MATERIAL WORK STOP ROD
FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
1 BLADE INCLUDED (350 X 2.5 X 32 Z=180)
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
MATERIAL STOP WITH RULER .............. POR
FLIP-OVER MATERIAL STOPS WITH 60" RULER POR
R2 RULER EXT FOR OUT FEED ROLLER TABLES POR
K40 5' ROLLER TABLE ................... POR
HSS OXIDE COATED BLADE (350 X 2.5 X 32) POR
