Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
Hyd-Mech saws
Model:
S-20A BANDSAW

Specifications

Condition:
new
Serial number:
Part11330000
Stock number:
061575

Description

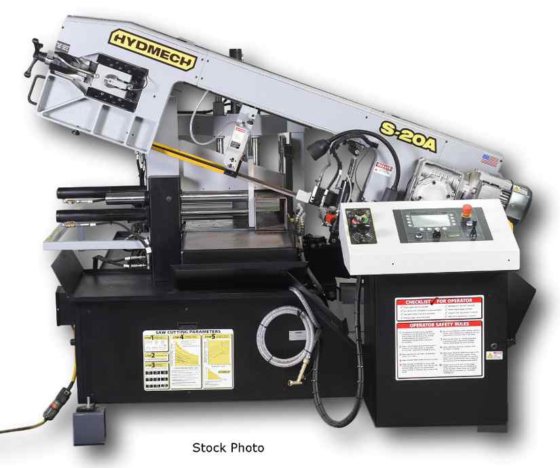

HYD-MECH (NEW) MODEL S-20A AUTOMATIC PIVOT
STYLE BANDSAW
CAPACITY RECTANGLE ROUND
90 DEGREES 13" X 18.00" 13"
45 DEGREES 13" X 10.75" 12"
30 DEGREES 13" X 07.75" 8.5"
BLADE .................... 1" X 14'10"
BLADE DRIVE .............. 5 HP, 3 PHASE
MACHINE VOLTAGE .......... 208,240,480 OR 575
BLADE SPEED .............. 75-350 SFM
WORK LOAD ................ 5,000 LBS
TABLE HEIGHT ............. 31"
COOLANT TANK ............. 12 GALLONS
STANDARD MACHINE FEATURES
EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
SHUTTLE W/AUTO MULTI-INDEX UP TO 27"/STROKE
SHUTTLE - BALL SCREW & STEPPER MOTOR
TRUE DIRECT DRIVE BLADE - NO BELTS/PULLEYS
ON-DEMAND HYDRAULICS SAVE ENERGY
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
MECHANICAL BLADE TENSIONING WITH DRO
HYDRAULIC POSITIVE DOWN FEED
CAST IRON BAND WHEELS
TOUCH SCREEN PLC - 100 JOBS, 20 IN QUEUE
ADJUSTABLE CAST IRON GUIDE ARMS
EASY-ACCESS ELECTRICAL PANEL
OUT OF STOCK SWITCH
REPLACABLE BLADE BRUSH
ROBUST STEEL BASE
