HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$69,900 USD
Manufacturer:
Hyd-Mech saws
Model:
V-18APC VERTICAL

Specifications

Condition:
new
Serial number:
Part # 14030000
Stock number:
061532
Voltage:
208,240,480 OR 575
Blade size:
1.25" X 16'11"
Blade drive:
7.5 HP
Blade speed:
65 - 385 SFM
Table height:
38"
Mitering capability:
45 DEG LEFT/RIGHT
Subcategory:
Bandsaws, vertical

Description

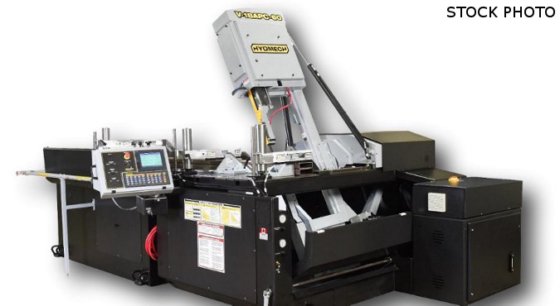

HYD-MECH (NEW) MODEL V-18APC VERTICAL
MITERING BANDSAW
CAPACITY-DEGREES RECTANGULAR ROUND
90 31" X 18" 17.5"
45 21" X 18" 17.5"
BLADE SIZE ............... 1.25" X 16'11"
BLADE DRIVE .............. 7.5 HP
VOLTAGE .................. 208,240,480 OR 575
BLADE SPEED .............. 65 - 385 SFM
HYDRAULIC TANK CAPACITY .. 7 GALLONS
COOLANT TANK CAPACITY .... 20 GALLONS
TABLE HEIGHT ............. 38"
MITERING CAPABILITY ...... 45 DEG LEFT/RIGHT
STANDARD MACHINE FEATURES
AUTO MITERING - "GO TO" ANGLE FUNCTIONALITY
TWO FULL STROKING HYDRAULIC VISES
ONE SQUARING VISE
AUTO MULTI-INDEXING UP TO 40" IN 1 STROKE
SELECT LEFT OR RIGHT SIDE INFEED
POWERED MOVABLE GUIDE ARM
PLC CONTROL - UP TO 99 JOBS W/5 IN QUEUE
DRAG CHAIN CHIP CONVEYOR
HYDRAULIC OVERHEAD BUNDLING
TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
HYDRAULIC POSITIVE DOWN FEED
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
OUT OF STOCK SWITCH
CAST IRON BAND WHEELS
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
EASY-ACCESS ELECTRICAL PANEL & HYDRAULICS
BLADE BREAKAGE SWITCH
HYDRAULIC BAND TENSIONING WITH DRO
REPLACABLE CARBIDE GUIDE INSERTS
2 HP HYD PUMP PROVIDES SYSTEM PRESSURE
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH-DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING ....... POR
FIXED 6 DEGREE CANTED HEAD ........ POR
VARIABLE VISE PRESSURE ............ POR
CHIP BUCKET ....................... POR
HYDRAULIC CHIP CONVEYOR ........... POR
TALL SQUARE VISE INSERTS .......... POR
MIST LUBRICATION SYSTEM ........... POR
NON-DRIVEN POP-UP LIFT ROLLER ..... POR
IDLER CONVEYORS ................... POR
POWER CONVEYORS.................... POR
OUTFEED VISE ...................... POR
