Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$101,500 USD
Manufacturer:
HYD-MECH
Model:
V-25APC SEMI-AUTO VT

Specifications

Condition:
new
Serial number:
Part # 14050000
Stock number:
061533
Voltage:
240 OR 480 VOLT
Blade size:
1.5" X 21'
Blade drive:
10 HP
Blade speed:
75 - 350 SFM
Table height:
44"
Mitering capability:
60 DEG LEFT/RIGHT
Subcategory:
Bandsaws, vertical

Description

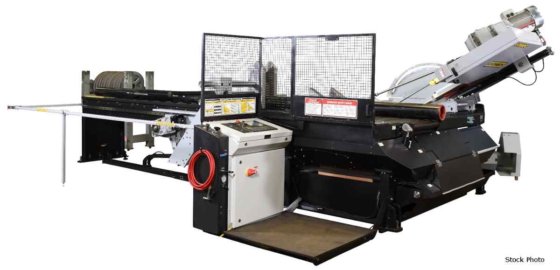

HYD-MECH (NEW) MODEL V-25 SEMI-AUTOMATIC
VERTICAL MITERING BANDSAW
CAPACITY RECTANGULAR SQUARE/ROUND
AT 90 DEGREES 30" X 25" 25"
AT 45 DEGREES 21" X 25" 21"
AT 60 DEG RIGHT 14.5" X 25" 14.5"
AT 60 DEG LEFT 13.5" X 25" 13.5"
BLADE SIZE ............... 1.5" X 21'
BLADE DRIVE .............. 10 HP
VOLTAGE .................. 240 OR 480 VOLT
BLADE SPEED .............. 75 - 350 SFM
HYDRAULIC TANK CAPACITY .. 7 GALLONS
COOLANT TANK CAPACITY .... 38 GALLONS
TABLE HEIGHT ............. 44"
MITERING CAPABILITY ...... 60 DEG LEFT/RIGHT
STANDARD MACHINE FEATURES
AUTO MITERING - "GO TO" ANGLE FUNCTIONALITY
6 DEGREE CANTED HEAD
60" BAR FEED, LEFT SIDE
AUTO MULTI-INDEXING UP TO 60" IN 1 STROKE
AUTOMATIC KERF COMPENSATION
POWERED BY RACK AND PINION SERVO DRIVE
HYDRAULIC HEAT TILT
TOUCH SCREEN CONTROL
PLC CONTROL - UP TO 1,000 JOBS, 20 IN QUEUE
2 FULL STROKING HYDRAULIC VISES
HYD POWERED PROGRAMMABLE GUIDE ARM
TRUE DIRECT BLADE DRIVE - NO BELTS/PULLEYS
CAST IRON BAND WHEELS
BLADE CHAMBER SEPARATES MATERIAL & CUT PART
HYDRAULIC CHIP CONVEYOR
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
OUT OF STOCK SWITCH
EASY ACCESS ELECTRICAL PANEL AND HYDRAULICS
BLADE BREAKAGE SWITCH
POP-UP FEED ROLLER - OPPOSITE BAR FEED
HYDRAULIC BAND TENSIONING WITH DRO
REPLACEABLE CARBIDE GUIDE INSERTS
3 HP HYDRAULIC PUMP FOR SYSTEM PRESSURE
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING ....... POR
TALL SQUARE VISE INSERTS .......... POR
OUT FEED VISE ..................... POR
5' RIGHT SIDE INFEED SHUTTLE ...... POR
10' SHUTTLE INFEED ................ POR
VARIABLE VISE PRESSURE ............ POR
MIST LUBRICATION .................. POR
IDLER CONVEYORS ................... POR
POWERED CONVEYORS ................. POR
CHIP BUCKET WITH PUMP ............. POR
BRIDGE INTERFACE BRACKET .......... POR
POWERED BRIDGE/INTERFACE BRACKETS . POR
