Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$26,700 USD
Manufacturer:
HYD-MECH
Model:
VW-18 SERIES II SAW

Specifications

Condition:
new
Serial number:
Part # A11340000
Stock number:
061535
Voltage:
240 OR 480
Blade size:
1.25" X 16'3"
Blade drive:
5 HP
Blade speed:
65 - 385 SFM
Table height:
36.5"
Mitering capability:
60 DEG LEFT/RIGHT
Subcategory:
Bandsaws, vertical

Description

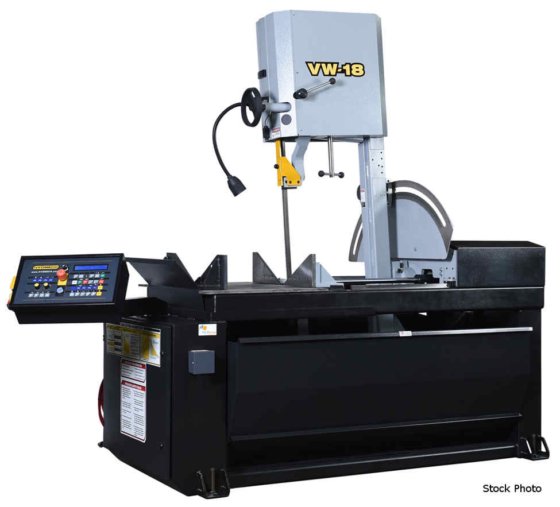

HYD-MECH (NEW) MODEL VW-18 SERIES II SEMI-
AUTOMATIC VERTICAL MITERING BANDSAW
CAPACITY DEGREE RECTANGULAR ROUND
STANDARD HEAD 90 22" X 18" 12.5"
STANDARD HEAD 45 15" X 18" 12.5"
STANDARD HEAD 60 10.25" X 18" 10.25"
3 DEGREE CANTED 90 20.75" X 18" 12.5"
3 DEGREE CANTED 45 14" X 18" 12.5"
3 DEGREE CANTED 60 9.5" X 18" 9.5"
BLADE SIZE ............... 1.25" X 16'3"
BLADE DRIVE .............. 5 HP
VOLTAGE .................. 240 OR 480
BLADE SPEED .............. 65 - 385 SFM
HYDRAULIC TANK CAPACITY .. 4 GALLONS
COOLANT TANK CAPACITY .... 12 GALLONS
TABLE HEIGHT ............. 36.5"
MITERING CAPABILITY ...... 60 DEG LEFT/RIGHT
STANDARD MACHINE FEATURES
ADJUSTABLE 3 DEGREE CANTED HEAD
DOUBLE ARTICULATING SEMI-AUTOMATIC CONTROL
TWO FULL STROKING HYDRAULIC VISES
MANUAL PRECISE HEAD POSITIONING
DIGITAL ANGLE DISPLAY
MECHANICALLY ADJUSTABLE GUIDE ARM
ON DEMAND HYDRAULICS SAVE ENERGY
TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
HYDRAULIC POSITIVE DOWN FEED
CAST IRON BAND WHEELS
REPLACEABLE BLADE BRUSH
ROBUST STEEL BASE
EASY-ACCESS ELECTRICAL PANEL & HYDRAULICS
BLADE BREAKAGE SWITCH
MECHANICAL BAND TENSIONING WITH DRO
REPLACABLE CARBIDE GUIDE INSERTS
0.5 HP HYD PUMP PROVIDES SYSTEM PRESSURE
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH-DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING* ...... POR
WORK STOP* ........................ POR
VARIABLE VISE PRESSURE ............ POR
POWER TILT ........................ POR
CHIP BUCKET ....................... POR
TALL SQUARE VISE INSERTS .......... POR
POWER TRANSFORMER ................. POR
MIST LUBRICATION SYSTEM ........... POR
IDLER CONVEYORS ................... POR
POWER CONVEYORS.................... POR
*BUNDLING & WORK STOP CANNOT BE USED TOGETHER
