Top Seller
HYD-MECH SAWS in Dodge Center,
Location:
Dodge Center, MN
Price:
$14,900 USD
Manufacturer:
HYD-MECH
Model:
S-20P BANDSAW

Specifications

Condition:
new
Serial number:
Part # 11340000
Stock number:
061528

Description

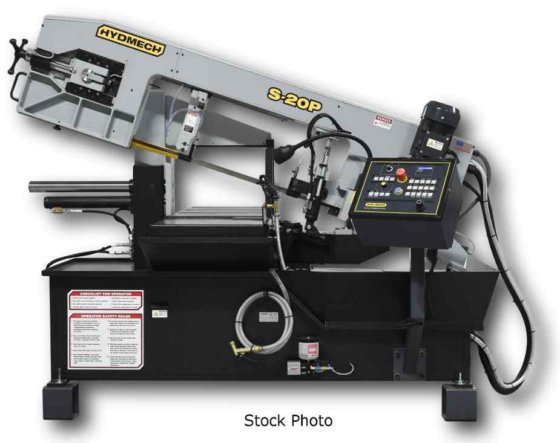

HYD-MECH (NEW) MODEL S-20P SEMI-AUTOMATIC
PIVOT STYLE BANDSAW
CAPACITY RECTANGLE ROUND
90 DEGREES 13" X 18.00" 13"
45 DEGREES 13" X 10.75" 12"
30 DEGREES 13" X 07.75" 8.5"
BLADE .................... 1" X 14'10"
BLADE DRIVE .............. 3 HP, 3 PHASE
MACHINE VOLTAGE .......... 208,240,480 OR 575
BLADE SPEED .............. 45-330 SFM
WORK LOAD ................ 5,000 LBS
TABLE HEIGHT ............. 31"
COOLANT TANK ............. 6 GALLONS
STANDARD MACHINE FEATURES
EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
FULL CAPACITY, FULL STROKING HYDRAULIC VISE
TRUE DIRECT DRIVE BLADE - NO BELTS/PULLEYS
ON-DEMAND HYDRAULICS SAVE ENERGY
36" MATERIAL IN-FEED ROLLER TABLE
19" MATERIAL OUT-FEED ROLLER TABLE
MECHANICAL BLADE TENSIONING WITH DRO
CAST IRON BAND WHEELS
SWING-AWAY SEMI-AUTOMATIC CONTROL
CAST IRON GUIDE ARMS
ADJUSTABLE IDLER SIDE GUIDE ARM
GRAVITY HEAD FEED
REPLACABLE BLADE BRUSH
ROBUST STEEL BASE
EASY-TO-READ ANGLE SCALE WITH ANGLE LOCKING
REPLACEABLE CARBIDE GUIDE INSERTS
SAFETY DOOR INTERLOCKS
FLOOD COOLANT WITH WASH-DOWN HOSE
LASER LIGHT
WORK LIGHT
OPTIONAL MACHINE FEATURES .. PRICE ON REQUEST
HYDRAULIC OVERHEAD BUNDLING ...... POR
REMOTE CONSOLE ................... POR
MIST LUBRICATION ................. POR
IDLER CONVEYORS .................. POR
VARIABLE VISE PRESSURE ........... POR
WORK STOP ........................ POR
SINGLE PHASE - 220 VOLT .......... POR
TO SEE A VIDEO OF THIS MACHINE, CLICK ON:
