Top Seller
1997 PEDRAZZOLI SAWS in Dodge
Location:
Dodge Center, MN
Price:
$6,990 USD
Manufacturer:
Pedrazzoli saws
Model:
IBP 350SA
Motor:
2.2 KW, 3 PH 220 V

Specifications

Condition:
new
Year:
1997
Serial number:
28702
Stock number:
078181
Dba:
89 APPROX
Blade:
14" DIA (350mm)
Motor:
2.2 KW, 3 PH 220 V
Speed:
3400 RPM
Rounds:
3-1/2" @ 45 DEGREES
Compound mitre:
45 DGREES OFF VERT
Capacity - rounds:
4" @ 90 DEGREES
Subcategory:
Cold saws

Description

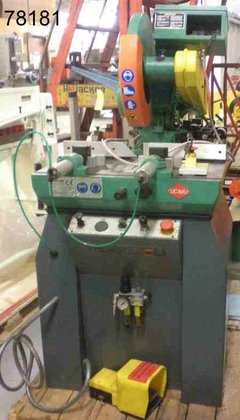

IPB/PEDRAZZOLI (NEW) MODEL 350SA PERRIS
COLD SAW NON-FERROUS
CAPACITY - ROUNDS,,,,,, 4" @ 90 DEGREES
- ROUNDS,,,,,, 3-1/2" @ 45 DEGREES
- RECTANGLES,, 5-1/2" X 3-1/2" @
90 DEGREES
SPEED ,,,,,,,,,,,,,,,,, 3400 RPM
BLADE,,,,,,,,,,,,,,,,,, 14" DIA (350mm)
MITER CAPACITY - LEFT,, 60 DEGREES
- RIGHT, 45 DEGREES
COMPOUND MITRE,,,,,,,,, 45 DGREES OFF VERT
Dba,,,,,,,,,,,,,,,,,,,, 89 APPROX
EQUIPPED WITH:
*MECHANISM FOR THE ROTATION OF HEAD BLOCK FOR
ANGLED CUTS - UP TO 60 DEG LEFT, 45 DEG
RIGHT AND 45 DEG OFF THE VERTICAL
*TWO PNEUMATIC VICES ADJUSTABLE BOTH
LENGTHWISE AND LATERALLY
*PNEUMATIC CYLINDER FOR HEAD MOVEMENT, WITH
BRAKE FOR SPEED ADJUSTMENT
*TWO SPEEDS OF BLADE ROTATION OBTAINABLE BY
MEANS OF INVERSION OF THE PULLEYS
*PERFECTLY BALANCED HEAD, TILTING UPON
SHIELDED BALL BEARINGS
*DRIVE PEDAL FOR SEMI-AUTOMATIC CYCLE
*PUSH BUTTON CONTROL WITH KEY ON CONTROL
PANEL FOR LOCK OUT
*VAPORIZER
*CLAM SHELL STYLE BLADE GUARD WITH RAPID
BLADE CHANGE SYSTEM
*PEDESTAL IN WLEDED METAL SHEET, 49 kg
*INSTRUCTION BOOK FOR USE AND MAINTENANCE
*SET OF WRENCHES FOR THE MAINTENANCE
MACHINE CYCLE:
-SAW HEAD ON - CLAMP - SAW HEAD CYCLE (CUT)
-RETURN - CLAMP RELEASE - SAW HEAD OFF
MOTOR,,,,,,,,,,,,,,,,,,, 2.2 KW, 3 PH 220 V
