1997 WF WELLS SAWS in
Location:
Dodge Center, MN
Price:
$32,000 USD
Manufacturer:
WF WELLS
Model:
VCO-2530
Weight:
15,000 LBS

Specifications

Condition:
used
Year:
1997
Serial number:
A2394/V9841
Stock number:
088187
Blade size:
1.25" X .05" X 18'6"
Blade drive:
10 HP TEFC
Blade speed:
75 - 570 SFPM
Sawing force:
VARIABLE 0 - 500 LB
Bandwheel size:
26"
Weight capacity:
15,000 LBS
Subcategory:
Bandsaws, vertical

Description

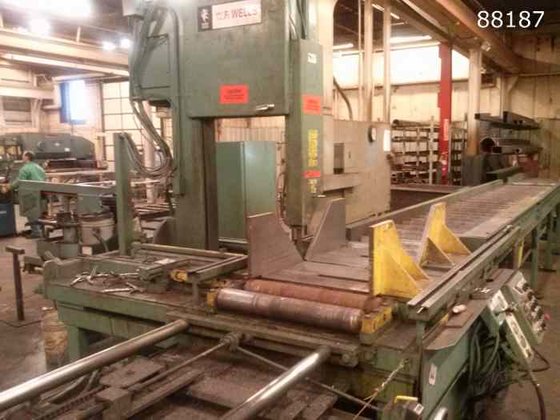

WF WELLS (USED) MODEL VCO-2530 BANDSAW
CAPACITY
90 DEGREE RECTANGLE .. 25" W X 30" H
45 DEGREE RECTANGLE .. 25" W X 17" H
WEIGHT CAPACITY ........ 15,000 LBS
BLADE SPEED ............ 75 - 570 SFPM
BLADE SIZE ............. 1.25" X .05" X 18'6"
BANDWHEEL SIZE ......... 26"
BLADE DRIVE ............ 10 HP TEFC
SAWING FORCE ........... VARIABLE 0 - 500 LB
EQUIPPED WITH:
BALL BEARING ROLLER BLADE GUIDE
HYDRAULIC CONSOLE CONTROLLED BLADE TENSION
FULL STROKE HYDRAULIC VISE
72" BAR FEED WITH 3 NESTING ATTACHMENTS
POWER LIFT ON IN-FEED ROLLS
30' OF POWER IN-FEED HEAVY-DUTY CONVEYOR
10' OF POWER OUT-FEED HEAVY-DUTY CONVEYOR
10' OF NON-POWER HEAVY-DUTY CONVEYOR
5' OF NON-POWER CONVEYOR
POWER CHIP CONVEYOR
COMPLETE SET OF MANUALS
