Top Seller
WELLSAW in Dodge Center, MN
Location:
Dodge Center, MN
Price:
$9,750 USD
Manufacturer:
WELLSAW
Model:
V20-24
Motor:
115/208/230 VOLT

Specifications

Condition:
new
Stock number:
061856
Throat:
20" DEEP
Blade size:
3/16" - 3/4"
Table size:
26" X 26"
Band wheels:
21" CAST ALUMINUM
Blade length:
16'1" (193")
Table height:
37-1/2"
Tilt - inside:
5 DEGREES
Table to guide:
24" HIGH
Tilt - outside:
45 DEGREES
Blade speed - low:
45-400 SFPM
1 phase 2 hp motor:
115/208/230 VOLT
3 phase 3 hp motor:
208/230/460 VOLT
Blade speed - high:
325-3000 SFPM
Subcategory:
Bandsaws, vertical

Description

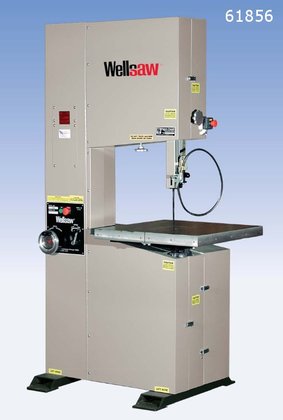

WELLSAW (NEW) MODEL V20-24 VERTICAL BAND SAW
THROAT .................... 20" DEEP
TABLE TO GUIDE ............ 24" HIGH
BLADE SIZE ................ 3/16" - 3/4"
BLADE LENGTH .............. 16'1" (193")
BAND WHEELS ............... 21" CAST ALUMINUM
WITH REPLACEABLE RUBBER TIRES
BLADE SPEED - LOW ......... 45-400 SFPM
BLADE SPEED - HIGH ........ 325-3000 SFPM
TABLE SIZE ................ 26" X 26"
TILT - INSIDE ............. 5 DEGREES
TILT - OUTSIDE ............ 45 DEGREES
TABLE HEIGHT .............. 37-1/2"
3 PHASE 3 HP MOTOR ........ 208/230/460 VOLT
1 PHASE 2 HP MOTOR ........ 115/208/230 VOLT
BLADE GUIDES HAVE SEALED BALL BEARINGS WITH
90 DEGREE ROTATION FEATURE
STANDARD FEATURES:
HEAVY TUBE STEEL FRAME
PRECISION GROUND CAST IRON TABLE
REPLACEABLE THROAT PLATE
UNIQUE HEAVY-DUTY ROLLER GUIDES
ROTATES 90 DEGREES
BALDOR MOTOR
MAGNETIC STARTER
UNDERVOLTAGE AND OVERLOAD PROTECTION
115 VOLTS AT CONTROLS
2-SPEED GEARBOX WITH HELICAL GEARS
OIL BATH LUBRICATION FOR QUIET OPERATION
BLADE SPEED INDICATOR
BLADE TENSION INDICATOR
FLEXIBLE ARM WORKLIGHT
CHIP BLOWER (SHOP AIR)
REMOVABLE CHIP TRAY
TIGER-TOOTH BI-METAL BLADE
OSHA BLADE GUARDING
ROTARY BLADE BRUSH
FACTORY-INSTALLED OPTIONS .. PRICE ON REQUEST
IDEAL BLADE WELDER, GRINDER & SHEAR .. POR
24" EXTENDED HEIGHT .................. POR
MITER GAUGE .......................... POR
26" RIP FENCE ........................ POR
VECTOR AC DRIVE VARIABLE BANDSPEED ... POR
SPRAY MIST COOLANT SYSTEM ............ POR
VACUUM NOZZLE ........................ POR
EXTENSION TABLE ...................... POR
STOCK STAND .......................... POR
5' & 10' NON-POWERED ROLLER CONVEYOR . POR
JIC OR NFPA ELECTRICS ................ POR
