Top Seller
BIRMINGHAM SHEARS in Dodge Center,
Location:
Dodge Center, MN
Price:
$22,100 USD
Manufacturer:
Birmingham
Model:
H-0465
Capacity:
4' X 1/4" MS

Specifications

Condition:
new
Stock number:
061260
Motor:
15 HP
Blade length:
4' 4"
Squaring arm:
40"
Pressure tons:
10.1
Rated capacity:
4' X 1/4" MS
Manual back gauge:
24"
Oil tank capacity:
40 GALLONS
Strokes per minute:
20 - 28 SPM
Number of holddowns:
8
2 front support arms:
40"
Subcategory:
Shears
Subcategory 2:
Squaring

Description

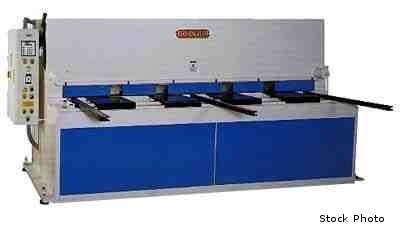

BIRMINGHAM (NEW) MDL H-0465 HEAVY DUTY
HYDRAULIC SHEAR
RATED CAPACITY ............ 4' X 1/4" MS
7 GA STAINLESS
BLADE LENGTH .............. 4' 4"
STROKES PER MINUTE ........ 20 - 28 SPM
NUMBER OF HOLDDOWNS ....... 8
PRESSURE TONS ............. 10.1
2 FRONT SUPPORT ARMS ...... 40"
SQUARING ARM .............. 40"
MANUAL BACK GAUGE ......... 24"
TOP BLADE RAKE ADJUSTMENT . 1/2 - 2
MOTOR ..................... 15 HP
OIL TANK CAPACITY ......... 40 GALLONS
FEATURES:
WELL BALANCED AND STURDY WELDED MACHINE FRAME
HIGH GRADE HIGH CARBON 2 EDGE UPPER BLADE
4 EDGE BOTTOM BLADE
HYDRAULIC RAKE ANGLE ADJUSTMENT
FULL LENGTH FINGER GUARD AND SHADOW LINE
LIGHTING
HYDRAULIC INDEPENDENT HOLDDOWNS
OVERLOAD PROTECTED HYDRAULIC SYSTEM
REMOTE FOOT CONTROL PEDAL W/SAFETY
PROTECTION
FULL ELECTRICS & CABINET WITH OPERATION PANEL
TOOL BOX AND LEVELING PADS
