Top Seller
TENNSMITH SHEARS in Dodge Center,
Location:
Dodge Center, MN
Price:
$2,150 USD
Manufacturer:
TENNSMITH
Model:
36 FOOT SQUARING SHR

Specifications

Condition:
new
Stock number:
060573
Back gauge range:
30"
Front gauge range:
37"
Options available:
PRICE ON REQUEST
Max cutting length:
37"
Subcategory:
Shears
Subcategory 2:
Squaring

Description

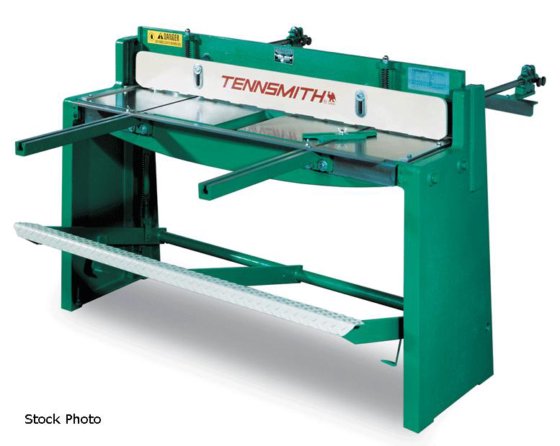

TENNSMITH (NEW) MODEL 36 FOOT SQUARING SHEAR
MAX SHEARING CAPACITY, MILD STEEL . 16 GAUGE
MAX SHEARING CAPACITY, STAINLESS .. 20 GAUGE
MAX CUTTING LENGTH ................ 37"
BACK GAUGE RANGE .................. 30"
FRONT GAUGE RANGE ................. 37"
FLOOR SPACE, GAUGES IN POSITION ... 45" X 80"
STANDARD EQUIPMENT:
- BACK GAUGE
- FRONT EXTENSION ARMS WITH STOP
- BEVEL GAUGE
- GRADUATED SIDE SCALES
FEATURES:
- SHEAR BED IS MACHINED AND SURFACE GROUND TO
PRECISION TOLERANCES
- SHEAR FRAME, BED & CUTTER HEAD CONSTRUCTED
OF HEAVY-DUTY CAST IRON
- TRIACTION, HIGH-CARBON/HIGH-CHROMIUM STEEL
BLADES HELP PREVENT MATERIAL MOVEMENT
- UPPER & LOWER BLADES HAVE 2 DEG EDGE RELIEF
- LOWER BLADE HAS AN ADDITIONAL 1 DEGREE FACE
RELIEF FOR MAXIMUM MATERIAL PENETRATION
- LOWER BLADE IS BED-ADJUSTING
- UPPER BLADE IS ADJUSTABLE BY MEANS OF A
TRUSS BAR ON THE CUTTER HEAD
- SPRING-ACTIVATED HOLDDOWN FEET CLAMP WORK
PIECE SECURELY AND ARE EASILY ADJUSTABLE
- DOUBLE-LOCKING BACK GAUGE WITH EMBOSSED
SCALES & VERNIER WHEELS FOR FINE ADJUSTMENT
OPTIONS AVAILABLE .......... PRICE ON REQUEST
- SQUARING ARM ................... POR
FOB FACTORY
