Top Seller
TENNSMITH SHEARS in Dodge Center,
Location:
Dodge Center, MN
Price:
$5,360 USD
Manufacturer:
TENNSMITH
Model:
52A AIR SHEAR

Specifications

Condition:
new
Stock number:
060062
Back gauge range:
30"
Available options:
PRICE ON REQUEST
Front gauge range:
37"
Max cutting length:
52-1/4"
Maximum operating pressure:
75 PSI
Subcategory:
Shears
Subcategory 2:
Squaring

Description

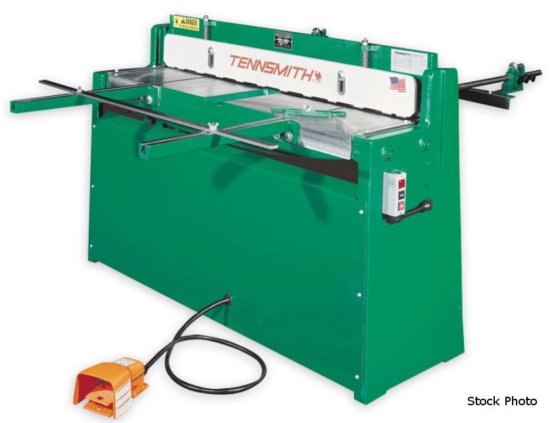

TENNSMITH (NEW) MODEL 52A AIR POWER SHEAR
MAX SHEARING CAPACITY, MILD STEEL . 16 GAUGE
MAX SHEARING CAPACITY, STAINLESS .. 20 GAUGE
MAX CUTTING LENGTH ................ 52-1/4"
BACK GAUGE RANGE .................. 30"
FRONT GAUGE RANGE ................. 37"
FLOOR SPACE, GAUGES IN POSITION ... 60" X 80"
STROKES PER MINUTE, FULL LENGTH ... 40 SPM
MAXIMUM OPERATING PRESSURE ........ 75 PSI
AIR CONSUMPTION PER STROKE, CU FT . 1.33
MOTOR ... 230/460 V, 3 PHASE, 60 HZ, 1745 RPM
STANDARD EQUIPMENT:
- BACK GAUGE
- FRONT EXTENSION ARMS WITH STOP
- BEVEL GAUGE
- GRADUATED SIDE GAUGES
- FOOT-OPERATED AIR VALVE CONTROL
- PRESSURE REGULATOR
- AIR GAUGE
- OILER/CONDENSER CUPS
- NEOPRENE PADDED HOLDDOWN FEET
- HIGH CARBON/HIGH CHROMIUM (HCHC) BLADES
AVAILABLE OPTIONS .......... PRICE ON REQUEST
- SQUARING ARM ...................... POR
- ONE-SHOT LUBRICATING SYSTEM ....... POR
FOB FACTORY
