TENNSMITH LM1012 MECHANICAL in Dodge
Location:
Dodge Center, MN, USA
Price:
No price
Manufacturer:
TENNSMITH
Model:
LM1012 MECHANICAL

Specifications

Condition:
new
Stock number:
061459
Category:
Machine Tools equipment in United States
Subcategory:
Shears
Subcategory 2:
Squaring

Description

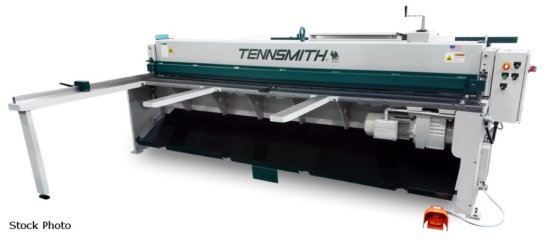

TENNSMITH (NEW) MODEL LM1012 MECHANICAL SHEAR
MAXIMUM SHEARING CAPACITY:
- MILD STEEL ....................... 12 GAUGE
- STAINLESS STEEL .................. 16 GAUGE
MAXIMUM CUTTING LENGTH ............. 121"
BACK GAUGE RANGE ................... 30"
STROKES PER MINUTE, FULL LENGTH .... 35
NUMBER OF HOLDDOWN FEET ............ 16
MOTOR - 230/460 VOLT, 3 PHASE, 60 HZ, 7.5 HP
FEATURES:
- 2X BACK GAUGE SYSTEM ALLOWS THE OPERATOR TO
MOVE THE BACKSTOP FROM 0 TO 30" IN APPROX.
2 SECONDS WITH 2 ROTATIONS OF THE HANDLE.
- 4-EDGE HIGH CARBON/HIGH CHROMIUM (HCHC) TOP
AND BOTTOM BLADES
- INDEPENDENT, SELF-LEVELING HOLDDOWN FEET
WITH NEOPRENE INSERTS
- SINGLE, CONTINUOUS, AND JOB STROKE CYCLES
- MOTOR REVERSE SWITCH
- PRECISION-MACHINED TABLE WITH HAND WELL,
DUAL INCH/METRIC INLAID BED SCALES
- NON-METALLIC GIBS
OPTIONS AVAILABLE .......... PRICE ON REQUEST
- DIGITAL READOUT .................. POR
- 5' SQUARING ARM .................. POR
- 10' SQUARING ARM ................. POR
- FRONT SUPPORT ARMS ..
