Top Seller
TENNSMITH SHEARS in Dodge Center,
Location:
Dodge Center, MN
Price:
$23,400 USD
Manufacturer:
TENNSMITH
Model:
LM1014

Specifications

Condition:
new
Stock number:
060272
Mild steel:
14 GAUGE
Stainless steel:
18 GAUGE
Back gauge range:
30"
Options available:
PRICE ON REQUEST
Maximum cutting length:
121"
Number of holddown feet:
16
Subcategory:
Shears
Subcategory 2:
Squaring

Description

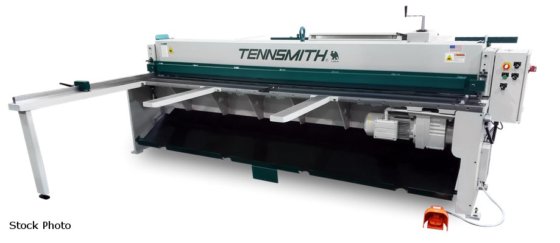

TENNSMITH (NEW) MODEL LM1014 MECHANICAL SHEAR
MAXIMUM SHEARING CAPACITY:
- MILD STEEL ....................... 14 GAUGE
- STAINLESS STEEL .................. 18 GAUGE
MAXIMUM CUTTING LENGTH ............. 121"
BACK GAUGE RANGE ................... 30"
STROKES PER MINUTE, FULL LENGTH .... 35
NUMBER OF HOLDDOWN FEET ............ 16
MOTOR - 230/460 VOLT, 3 PHASE, 60 HZ, 5 HP
FEATURES:
- 2X BACK GAUGE SYSTEM ALLOWS THE OPERATOR TO
MOVE THE BACKSTOP FROM 0 TO 30" IN APPROX.
2 SECONDS WITH 2 ROTATIONS OF THE HANDLE.
- 4-EDGE HIGH CARBON/HIGH CHROMIUM (HCHC) TOP
AND BOTTOM BLADES
- INDEPENDENT, SELF-LEVELING HOLDDOWN FEET
WITH NEOPRENE INSERTS
- SINGLE, CONTINUOUS, AND JOB STROKE CYCLES
- MOTOR REVERSE SWITCH
- PRECISION-MACHINED TABLE WITH HAND WELL,
DUAL INCH/METRIC INLAID BED SCALES
- NON-METALLIC GIBS
OPTIONS AVAILABLE .......... PRICE ON REQUEST
- DIGITAL READOUT .................. POR
- 5' SQUARING ARM .................. POR
- 10' SQUARING ARM ................. POR
- FRONT SUPPORT ARMS ............... POR
- PROTRACTOR ATTACHMENT ............ POR
- PERFORMANCE PACKAGE* ............. POR
* 5' SQUARING ARM
* 2 FRONT SUPPORT ARMS
* AIR-OPERATED SHEET SUPPORT SYSTEM
