Top Seller
TENNSMITH SHEARS in Dodge Center,
Location:
Dodge Center, MN
Price:
$17,400 USD
Manufacturer:
TENNSMITH
Model:
LM610 MECHANICAL SHR

Specifications

Condition:
new
Stock number:
060275
Mild steel:
10 GAUGE
Stainless steel:
14 GAUGE
Back gauge range:
30"
Options available:
PRICE ON REQUEST
Maximum cutting length:
60-1/2"
Number of holddown feet:
12
Subcategory:
Shears
Subcategory 2:
Squaring

Description

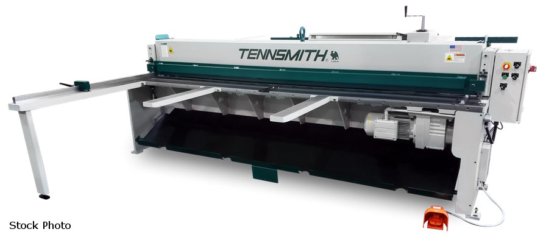

TENNSMITH (NEW) MODEL LM610 MECHANICAL SHEAR
MAXIMUM SHEARING CAPACITY:
- MILD STEEL ....................... 10 GAUGE
- STAINLESS STEEL .................. 14 GAUGE
MAXIMUM CUTTING LENGTH ............. 60-1/2"
BACK GAUGE RANGE ................... 30"
STROKES PER MINUTE, FULL LENGTH .... 35
NUMBER OF HOLDDOWN FEET ............ 12
MOTOR - 230/460 VOLT, 3 PHASE, 60 HZ, 7.5 HP
FEATURES:
- 2X BACK GAUGE SYSTEM ALLOWS THE OPERATOR TO
MOVE THE BACKSTOP FROM 0 TO 24" IN APPROX.
2 SECONDS WITH 2 ROTATIONS OF THE HANDLE.
- 4-EDGE HIGH CARBON/HIGH CHROMIUM (HCHC) TOP
AND BOTTOM BLADES
- INDEPENDENT, SELF-LEVELING HOLDDOWN FEET
WITH NEOPRENE INSERTS
- SINGLE, CONTINUOUS, AND JOB STROKE CYCLES
- MOTOR REVERSE SWITCH
- PRECISION-MACHINED TABLE WITH HAND WELL,
DUAL INCH/METRIC INLAID BED SCALES
- NON-METALLIC GIBS
OPTIONS AVAILABLE .......... PRICE ON REQUEST
DIGITAL READOUT ...................... POR
