Top Seller
BUSHMAN MATERIAL HANDLING in Dodge
Location:
Dodge Center, MN
Manufacturer:
BUSHMAN
Model:
5600
Capacity:
15,000 LBS

Specifications

Condition:
new
Stock number:
061397
Paint:
ONE COAT OF BUSHMAN SAFETY ORANGE
Range:
32" TO 96"
Capacity:
15,000 LBS
Warranty:
12 MONTHS FROM DATE OF SHIPMENT
Bail type:
DUAL BAIL
Stack height:
15"
Subcategory:
Sheet lifters
Subcategory 2:
Material handling

Description

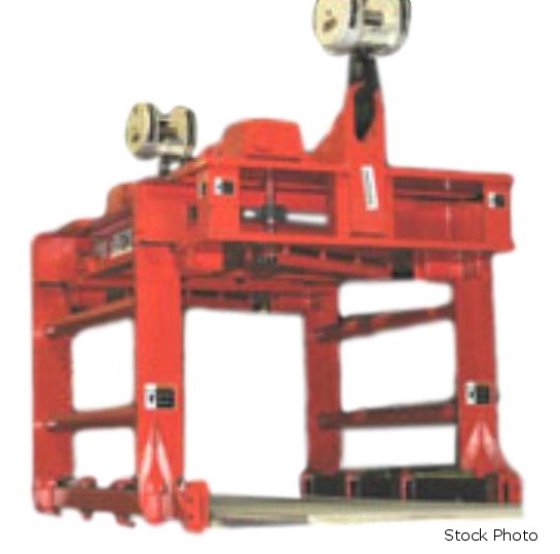

BUSHMAN (NEW) MDL 5600 SHEET LIFTER
MANUALLY OPERATED WITH HANDWHEEL DRIVE
CAPACITY,,,,,,,,,,,,,,,,, 15,000 LBS
BAIL TYPE,,,,,,,,,,,,,,,, DUAL BAIL
RANGE,,,,,,,,,,,,,,,,,,,, 32" TO 96"
STACK HEIGHT,,,,,,,,,,,,, 15"
CARRYING ANGLE LENGTH,,,, 120"
THE SHEETLIFTER HAS A ERGONOMICALLY DESIGNED
HANDWHEEL FOR EASY ADJUSTEMENT OF THE LIFTING
LEGS FOR VARIATIONS IN SHEET WIDTH. LEGS ARE
LOCKED IN POSITION BY MEANS OF A SELFLOCKING
WORM GEAR DRIVE TO PREVENT ACCIDENTAL OPENING
WHILE HOLDING A LOAD
A BRONZE WORM GEAR TURNS A DRIVE TRAIN THAT
ROTATES INDIVIDUAL PINIONS TO SIMULTANEOUSLY
DRIVE GEAR RACKS ON THE SLIDER ARMS. THIS
ARRANGEMENT MINIMIZES THE OVERALL WIDTH OF
THE LIFTER, THEREBY ALLOWING USE IN NARROW
AISLE APPLICATIONS. THE SLIDER ARMS ARE
SPECIALLY FORMED CHANNEL SECTIONS THAT ARE
CAPTURED WITHIN FULL-LENGTH TRACKS TO ASSURE
SMOOTH ARM TRAVEL
PAINT: ONE COAT OF BUSHMAN SAFETY ORANGE
ALL BUSHMAN EQUIPMENT LIFTING DEVICES MEET
OR EXCEED THE ANSI STANDARD B30.20
DRAWING APPROVAL MAY BE REQUIRED PRIOR TO
FABRICATION
THE MAIN FRAME IS A HEAVY STEEL PLATE BOX
WELDMENT TO ASSURE RIGIDITY AND RESIST
TWISTING
DELIVERY IS APPROX 7-8 WEEKS AFTER RECEIPT
OF SIGNED APPROVAL DRAWING
TWO (2) INSTALLATION, MAINTENANCE INSTRUCTION
AND PARTS MANUALS WILL BE PROVIDED
WARRANTY: 12 MONTHS FROM DATE OF SHIPMENT
COVERING DEFECTS IN MATERIAL AND WORKMANSHIP
AND DOES NOT INCLUDE FIELD LABOR
AVAILABLE OPTIONAL FEATURES:
SLOP-1 END MOUNTED HANDWHEEL OPERATION IS
STANDARD FOR SIDE MOUNTED HANDWHEEL
PRICE ON REQUEST
SLOP-10 FOR MOTORIZED LEG DRIVE - 3/60/460
VAC POWER INCLUDING MOTOR WIRED
TO A NEMA 12 JUNCTION BOX, PLUG AND
RECEPTACLE. CMAA CLASS D RATING,
PRICE ON REQUEST
SLOP-11 FOR MOTORIZES LEG DRIVE - 3/60/460
VAC POWER INCLUDING MOTOR WIRED TO A
NEMA 12 JUNCTION BOX, PLUG AND
RECEPTACLE. CMAS CLASS E RATING,
PRICE ON REQUEST
